Chopper Distributor Adjustment (Rocker Switch with Center Position) ( Option CWS)

Adjustment is only possible with separator engaged.

Operation:

In windy conditions and/or on slopes, straw distribution may be adapted to harvesting requirements after basic adjustment with regard to header width has been performed. When working on slopes, this switch is used to regulate the direction of straw distribution. This will avoid downhill straw accumulations. Corner post gauge (A) shows current direction of straw distribution.

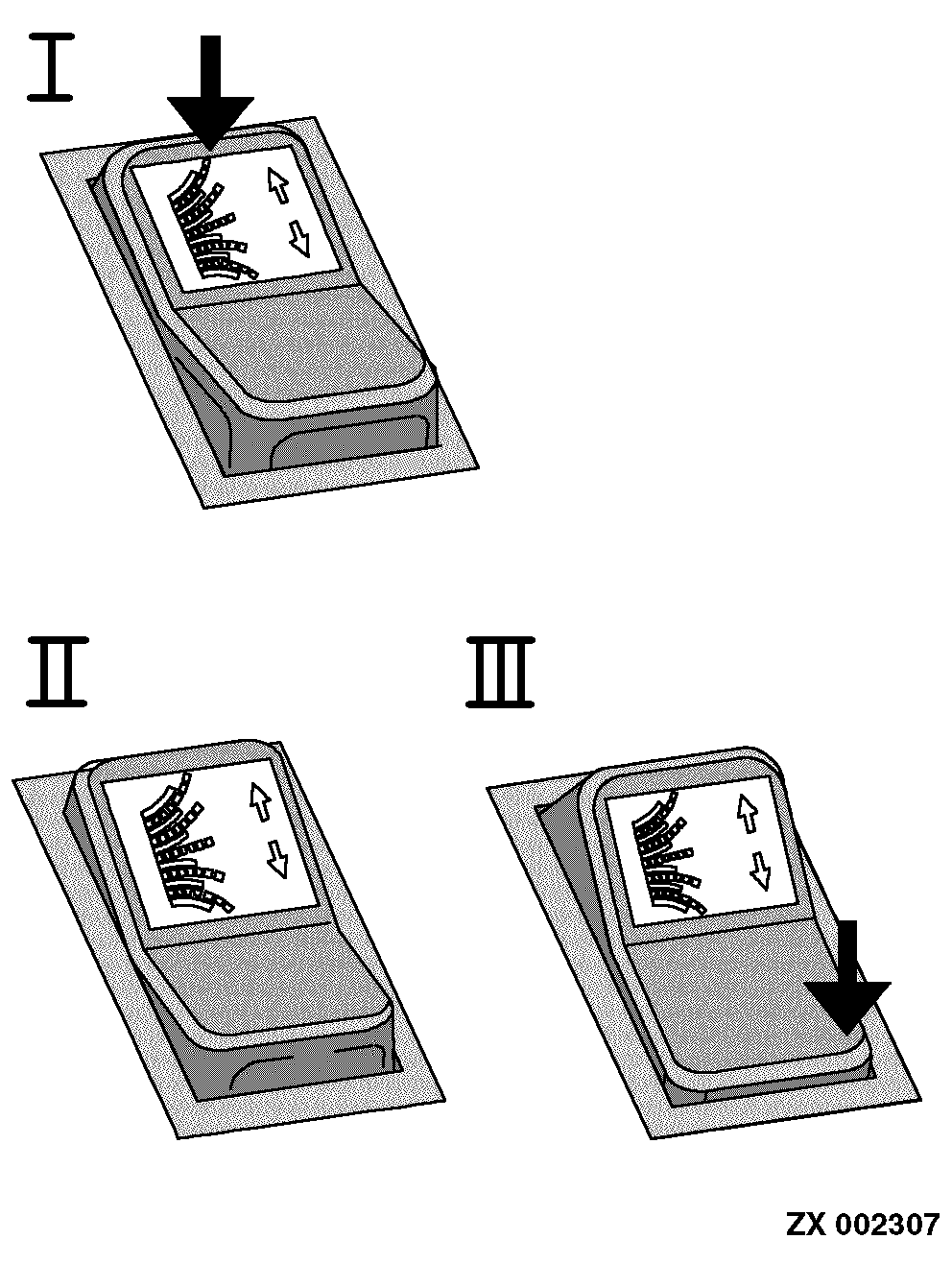

I-Material is thrown to the right
II-Off
III-Material is thrown to the left

MB03730,00001EF -19-11NOV02-1/1
