Switch for Electrically Adjustable Outside Mirrors (Option CWS)

Mirror adjustment is only possible when starter switch is in "On" position (turned to position I or further).

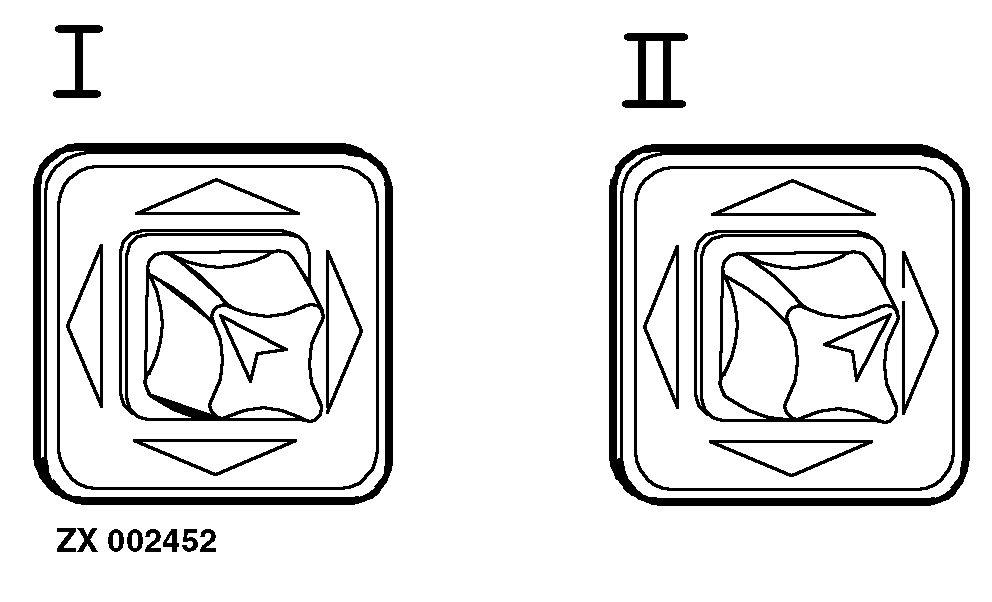

Move mirrors up/down or to the right/left according to arrows on switch.


I-Adjusting l.h. outside mirror
II-Adjusting r.h. outside mirror

ZX002452

MB03730,00001F2 -19-13MAR02-1/1
