Adjusting Straw Deflectors - Electrical Straw Distributor (Option CWS)

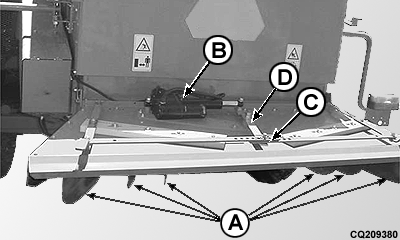

Straw deflectors (A) are adjusted centrally by means of electric motor (B). The adjustment is made from the operator's cab.

If the moisture of the straw changes, the spreading width can be changed quickly by moving slotted strips (C) at motor adjusting lever (D). Push slotted strips (C) outward for a wider spread, or inward for a narrower spread.
