Engine Electronic System Diagnostic Gauge (1450 CWS and 1550 CWS)

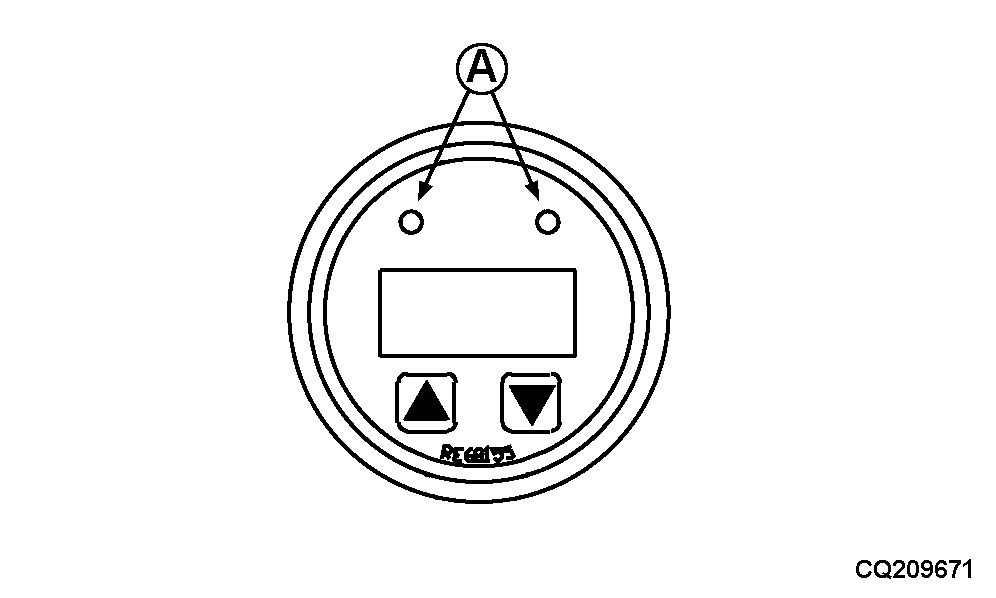

This gauge has two lights (A) that indicate the existence of active diagnostic trouble codes.

Red light activated: This means a corrective action is immediately required. Do not operate combine until the problem is corrected.

Yellow light activated: This means a diagnostic trouble code has been generate. Stop the combine when convenient and determine the cause.

The diagnostic trouble codes reading of the engine electronic system can be done as further description in this section.

For further information about the activated fault codes see your John Deere dealer.

A-Lights

MB03730,0000206 -19-23OCT02-1/1
