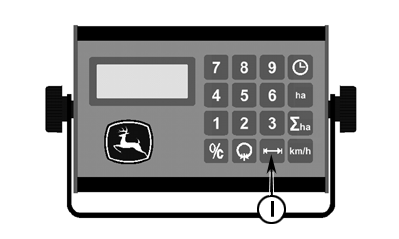

Area Counter - Encode of Working Width (CWS)The working width is encoded as follows: Press key (I) and the last encoded working width is displayed. Then encode the measured or calculated value for the working width.
|
|
MB03730,0000213 -19-17MAY02-1/2 |
|
If the working width is unknown, it is adviceable to travel for 5 turns, measure the harvested width, divide this by 5 and in this way determine the working width. Enter in centimetres. Example: 11.30 m shall be entered as 1130 cm. IMPORTANT: When wheel circumference and working width are entered in centimetres, the monitor will calculate in the metric system (km/h, ha, etc.). If you want any of the functions to be calculated in the imperial system (mph, acres etc.) you will have to convert one or both of the figures in accordance with the table (see Area Counter - Error Indication). |
|
MB03730,0000213 -19-17MAY02-2/2 |
