Area Counter - Meter Counter (CWS)

By encoding a working width of 9999 you can use the area trip counter as metre counter.

The metre counter can only be used if the wheel circumference is encoded in cm. (speed is displayed in km/h).

Preparation of meter (distance) counter:

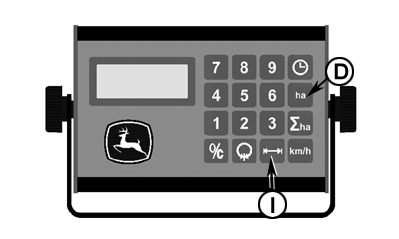

Press keys (I), 9, 9, 9 and 9 in this order.

Then function key is chosen:

Press key (D) and distance will be displayed in metres.

Distance counter is zeroed like area trip counter.

D-Trip Counter
I-Encode of working width

MB03730,0000219 -19-05FEB02-1/1
