Area Counter - Error Indication (CWS)

When the word "FEJL" appears on the display, it is due to the area counter not being supplied by 12 V, but by a lower voltage than required. Therefore check both " + " and " - "to the monitor.

If a problem still exists, it is adviseable to check the vehicle electrical system.

Conversion table from metric into imperial:
Desired unit of measurement: Value to be encoded:
Speed Area H I
Km/h Hectares cm. cm.
Km/h Acres cm. cm. x 2,741
mph Hectares cm. x 0,621 cm. x 1,610
mph Acres cm. x 0,621 cm. x 3,979



NOTE: Always measure the wheel circumference and working width in centimetres, and then convert them according to the table above.

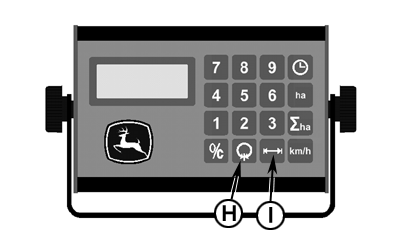

CQ209479


H-Wheel circumference
I-Encode of working width

MB03730,000021A -19-13MAR02-1/1
