Cutterbar Pressure Gaube (1450 and 1550 with 600 Series Flex Platforms)

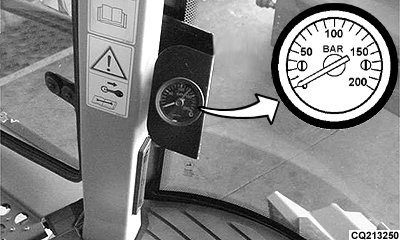

This gauge is placed into the cab on left cornerpost and shows the pressure of the cutterbar floatation system.

Recommended Pressures

Recommended Pressures
Soil condition Pressure
Extremely firm 62 - 70 bar (900 - 1015 PSI)
Normal 71 -90 bar (1015 -1300 PSI)
Soft > 91 bar ( > 1320 PSI)


CQ213250

MB03730,0000383 -19-09OCT02-1/1
