Chaff Spreader (1450 CWS and 1550 CWS) - Changing from Vertical to Horizontal Position

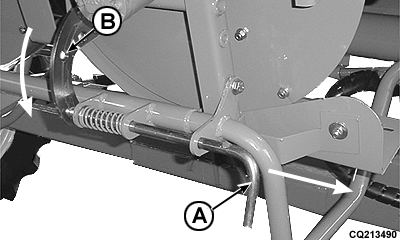

Pull pin (A) and turn chaff spreader to horizontal position until pin drops in hole (B).

CQ213490

MB03730,0001BB2 -19-29MAY02-1/5

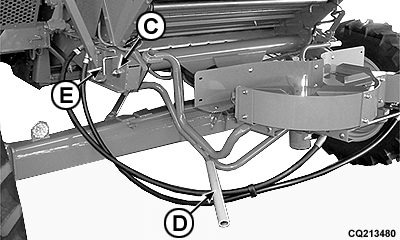

Loose nut (C) turning at least one revolution.

Put lever (D) that is placed in tool box, on chaff spreader frame pin.

Pull pin (E) and lower chaff spreader with lever (D) until pin drops in other hole.

CQ213480

MB03730,0001BB2 -19-29MAY02-2/5

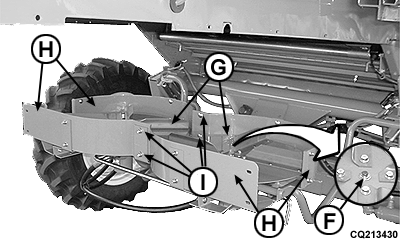

Remove central bolt (F) from both disks (G) and remove disks.

Remove deflector sheets (H) by loosing bolts (I), (J), (L) and (M).

Invert position of disks (G) and deflector sheets (H).

CQ213430

Disks and deflector sheets assembled for horizontal position

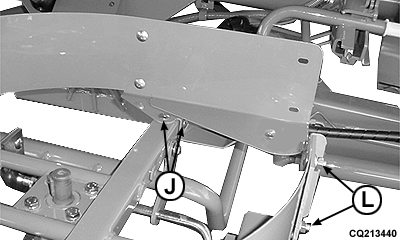

CQ213440

Deflector sheet assembled for horizontal position

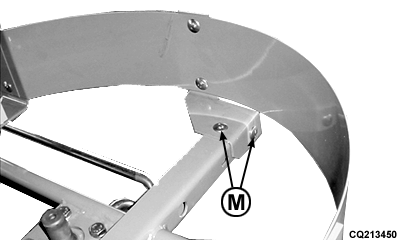

CQ213450

Deflector sheet assembled for horizontal position

MB03730,0001BB2 -19-29MAY02-3/5

Deflector sheet (N) has also an adjustment in order to change chaff flow direction. The adjustment is done by loosing bolt (O) in both sides of chaff spreader.

CQ213530

MB03730,0001BB2 -19-29MAY02-4/5

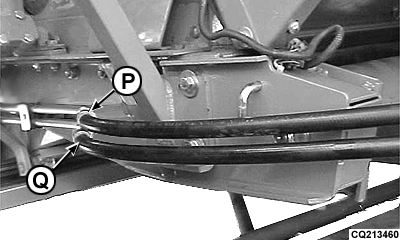

Invert hoses (P) and (Q) to invert chaff spreader disks rotation direction.

CQ213460

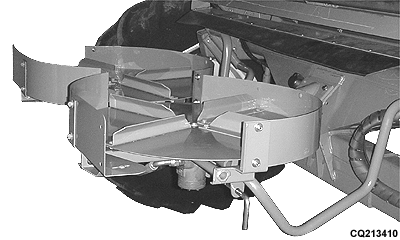

CQ213410

Chaff spreader in horizontal position

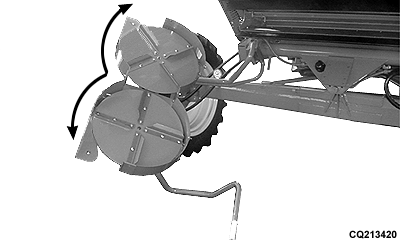

CQ213420

Rotation direction of disks and deflector sheets position for horizontal position

MB03730,0001BB2 -19-29MAY02-5/5
