Chaff Spreader (1450 CWS and 1550 CWS) - Lateral Swing

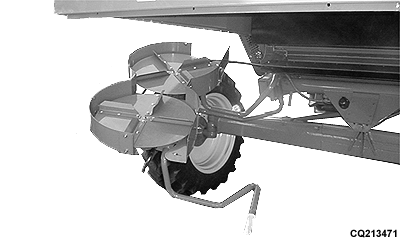

The lateral swing of chaff spreader can be done with spreader both in vertical and horizontal position. If chaff spreader is in vertical position it is necessary to dislocate only the set of disks to horizontal position to make possible the spreader swing.

MB03730,0001BB3 -19-05APR02-1/2

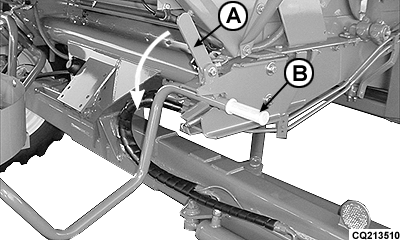

Pull lever (A) to release arm (B) and swing spreader.

Lateral swing of chaff spreader
