Chaff Spreader (1450 CWS and 1550 CWS) - Speed Adjustment

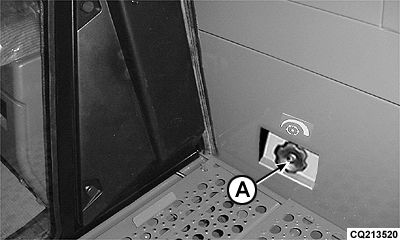

The speed adjustment is done through handle (A) and depend on the following items:

  • Moisture of culture
  • Amount of chaff
  • Desired covering area

NOTE: The chaff should be thrown uniformly over the rear tire.

With the product very dry is necessary to reduce the chaff spreader speed to prevent the high dispersion of chaff.

CQ213520

MB03730,0001BB4 -19-05APR02-1/1
