Header Height Automatic Control - Rigid Platforms 600 Series (CWS)

IMPORTANT: Only for rigid platforms with rods controlled by two sensors installed on platform.

Requirements:

· Engine running (high speed).

· Road safety switch in field position.

· Threshing and platform engaged.

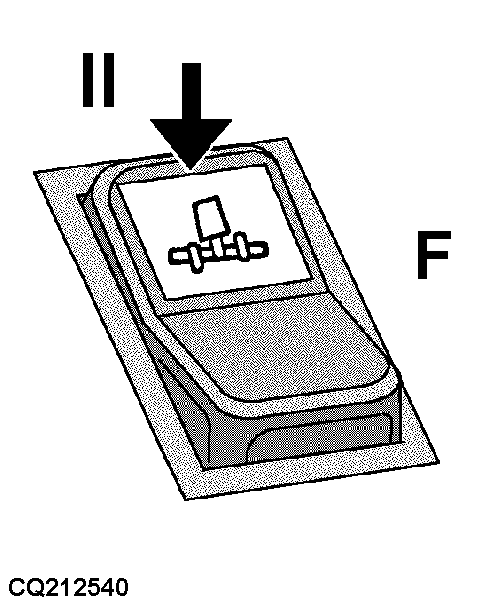

· To enable header height and tilt control move switches (E) and (F) to position (II).

NOTE: Do not adjust the header height control before the oil is heated to avoid to have differences on the header height as the oil is heated.

To activate header height automatic control, press button (C).

Header Height Settins:

See "Header Calibration Procedure (600 Series) Step by Step" in section "Service " Electrical System".

Example:

At the end of the field, raise header by actuating switch (D). After changing direction of combine travel, lower header using switch (D) or button (C) to return to header height mode.

CQ211550
CQ212540
CQ211543

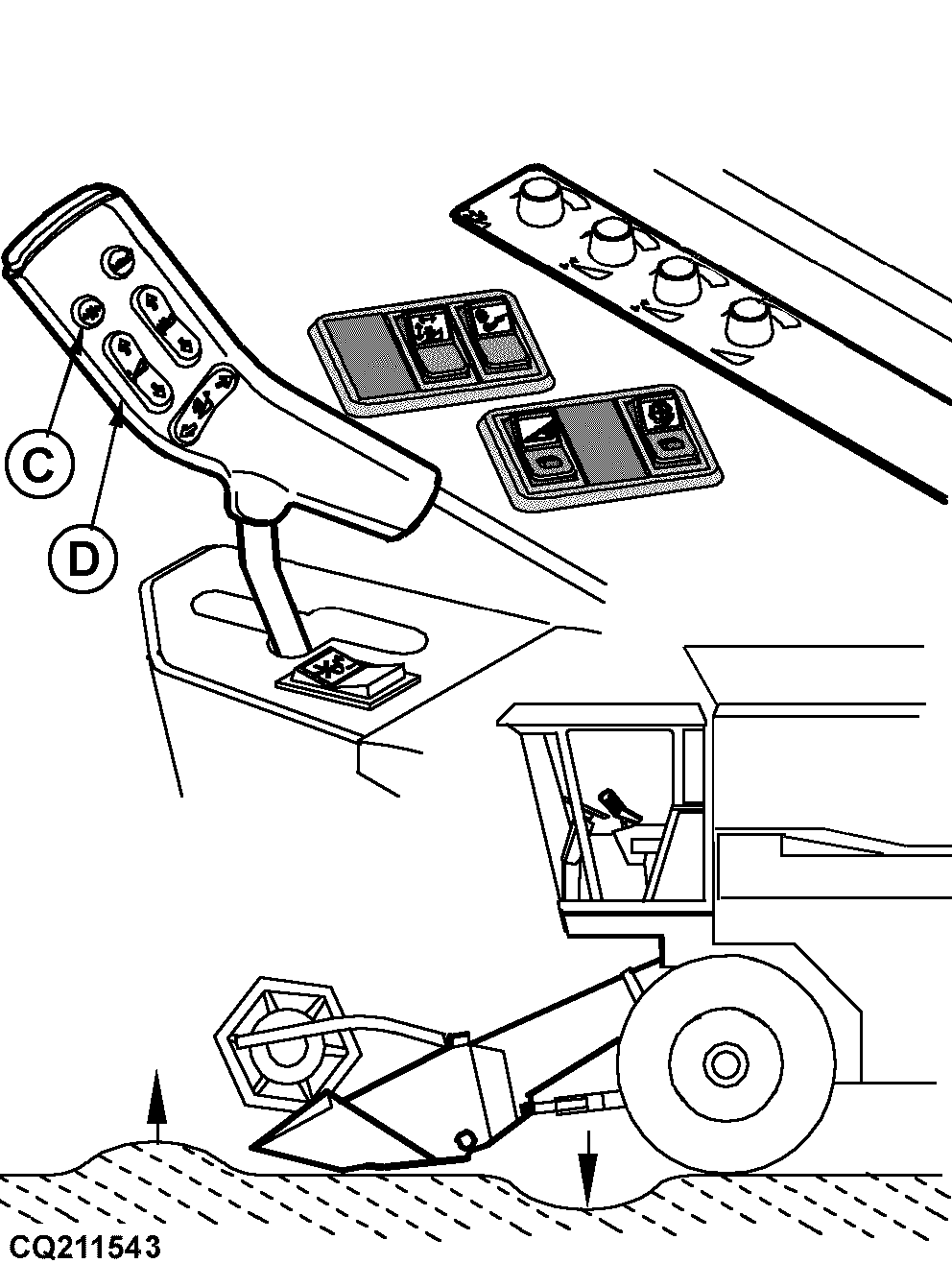

C-Header height resume button
D-Switch, raise/lower header
E-Header height control switch
F-Header lateral tilt enable switch
