Area Counter - Fault Finding (CWS)

If it is suspected that one of the sensors is not operating correctly, the system can be checked as follows:

First a working width of 8888 is encoded.

Press keys (I), 8, 8, 8 and 8 in this order.

Then function key is chosen:

Press key (C) and the following will be displayed:

An " h " appears when the wheel sensor is activated.

An " r " appears when the feeder house sensor is activated.

NOTE: " r " appears when the area counters are off.

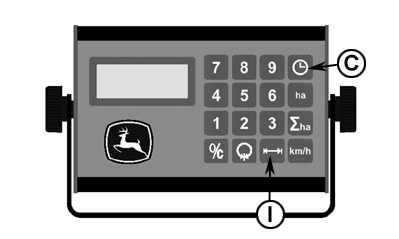

CQ209478


C-Time consumption in hours/minutes
I-Encode of working width

WH03730,000021A -19-13MAR02-1/1
