Starting Motor Relay (1450 and 1550)

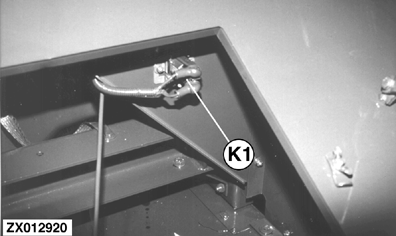

K 1 - Relay, Starting Motor

The solenoid switch of the starting motor is supplied with power via relay. It is attached to the left-hand rear grain tank support.

Access is possible via an opening in the grain tank bottom.

ZX012920

WH,CO03622,2223 -19-03JUN02-1/1
