Separating Process

Threshed straw and any remaining grain are deflected and thrown onto the straw walkers. The agitating straw walker action removes the remaining grain which falls onto the grain pan.

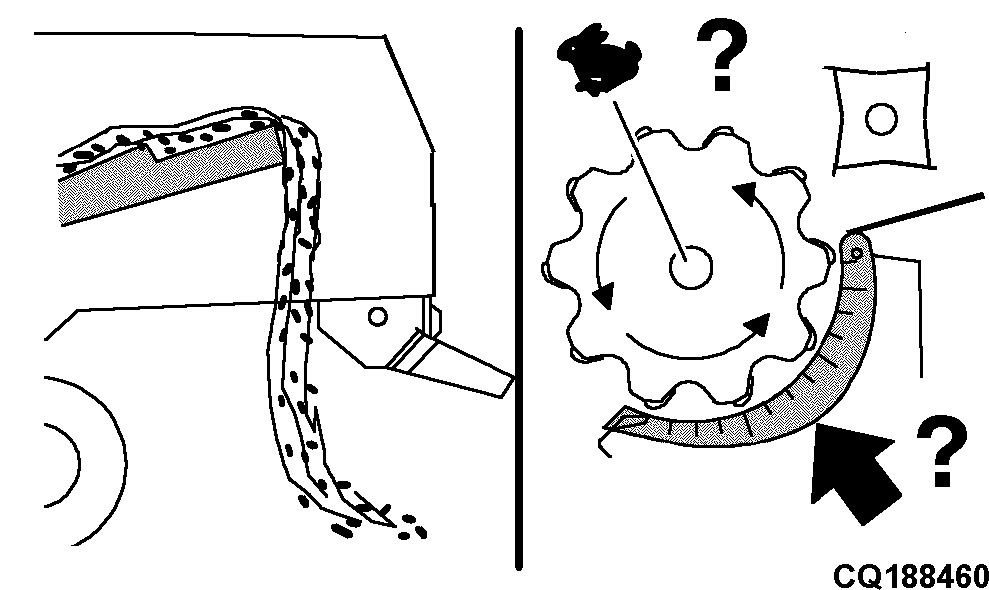

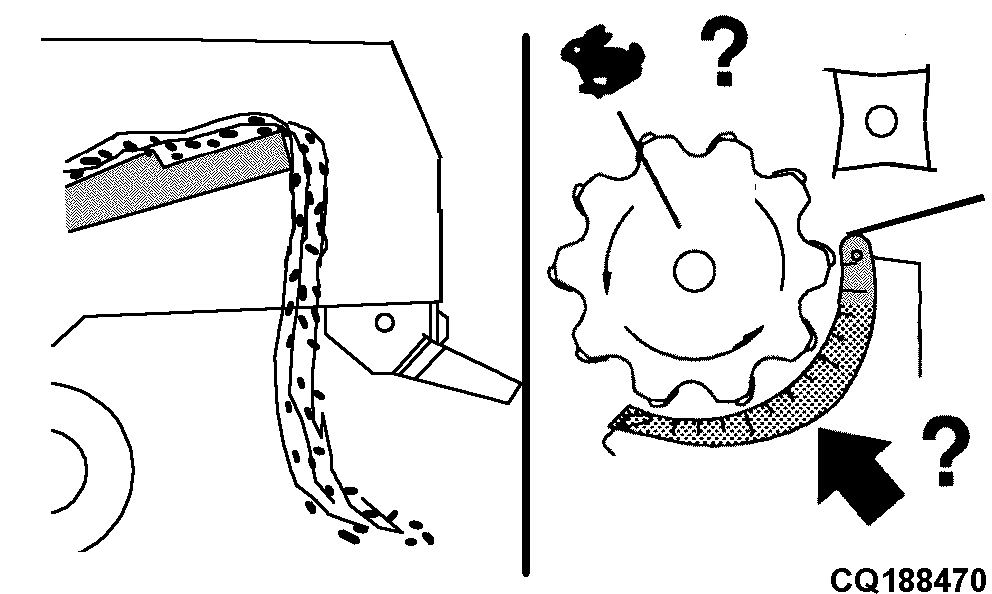

Avoid underthreshing and excessive tailings, which may provoke the overload of the straw walkers and excessively rapid threshing. As a result, grain passes over the straw walkers and out of the combine with the mass of the straw.

Check:
·Is the concave spacing narrow enough?
·Is the cylinder speed fast enough?

AG,CO03622,1560 -19-20AUG04-1/1
