Lubrication of Veda System

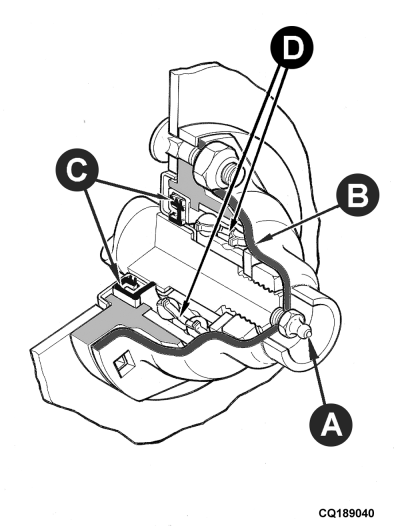

CQ189040-UN-19AUG99

A - Fitting

B - Cover

C - Shaft Seal

D - Bearing

Veda System is a special sealing system for the bearings on John Deere planters, which is designed to extend the service life of parts containing bearings.

The Veda System bearings are protected by 3 and 5 lip shaft seals and a labyrinth system that guarantees the most perfect seal.

The lubrication period is 50 hours.

IMPORTANT: Maximum pressure of VedaSystem is 2 bar.
