Locking Row Marker - C-Type

When transporting or storing planter, lock row markers to prevent possible accidents.

1.

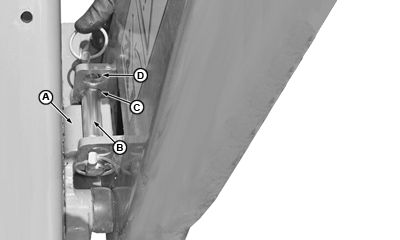

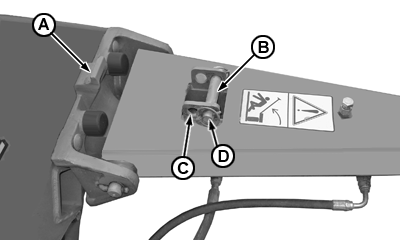

   CQ291421-UN-23JAN12


   CQ291422-UN-23JAN12

   A - Vertical Strut

   B - Pin

   C - Hole

   D - Hole

   Remove pin (B) from hole (D).

---




2. Raise marker into vertical position.

3. Install pin to hole (C) in vertical strut (A) and lock marker in vertical position.

4. Carry out procedure on both sides of markers.

   CAUTION: Turn off tractor to carry out installation to prevent accidents.

   IMPORTANT: Install pin to hole (C) securing against vertical strut (A) on both sides of markers to prevent system overload.
