How to Zero the Vacuum Blower Pressure Gauge

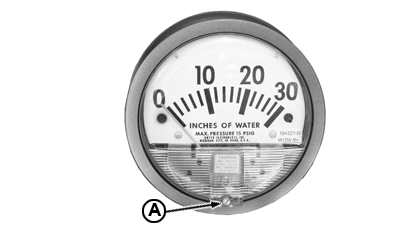

CQ291447-UN-23JAN12

1. With the vacuum blower disengaged and the pressure gauge in the vertical position, disconnect the pressure gauge line to alleviate pressure.

2. Use setscrew (A) to position pressure gauge needle exactly on zero.

3. Connect pressure line.
