Installing Seed Knockout Wheel Assembly

1. NOTE:


   A51650-UN-04FEB03


   A51175-UN-19NOV02


   H42770-UN-27NOV90

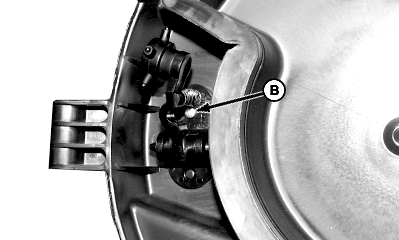

   Corn and Sorghum Seed Knockout Assembly Shown


   A51651-UN-04FEB03

   A - Knockout Wheel

   B - Locking Bolt

   C - Wiper Assembly

   D - Seed Knockout Assembly

   The seed knockout wheel (A) is used to ensure that certain types of seeds are fully released from the vacuum hole. The protuberances of the wheel slot into the holes of the vacuum holes, knocking out all seeds and foreign matter present.

   NOTE: Seed knockout wheel is necessary for planting sorghum. Sorghum usually has an irregular shape, thereby making it more probable that the seed will lodge in the vacuum hole.

   Open vacuum meter.

---

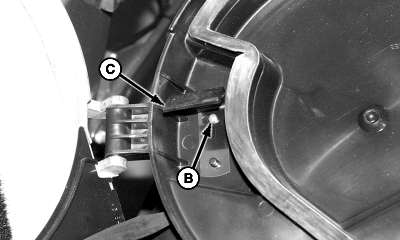

2. Loosen bolt (B) and remove wiper assembly (C).

3. Install expulsion assembly (D), using bolt (B) unfastened in Step 2.

   NOTE: When closing, check that the wheel is rotating in track of seed disk.
