Inspection of Vacuum Pump Motor Shield

CQ291457-UN-23JAN12

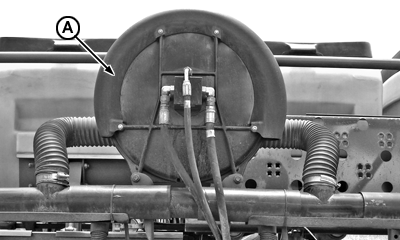

Vacuum pump motor shield (A) may become clogged up with dust, dirt or seed treatment residue. If vacuum pump motor shield is partially obstructed this might cause a loss of vacuum.

CAUTION: Agricultural chemicals may be hazardous. The inappropriate handling or choice of products can poison persons, animals and cause irreparable damage to the environment. Use and apply these products with care, carefully following the manufacturer's instructions.

Clean vacuum pump motor shield with a rag or a small brush when necessary.
