Inspecting Vacuum Motor

CQ291478-UN-23JAN12

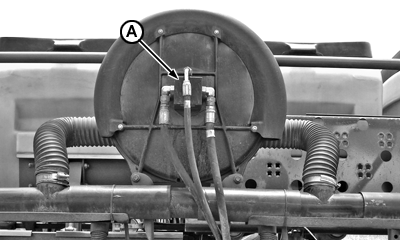

Visually inspect for oil leaks from vacuum motor (A).

A small quantity of oil leakage is acceptable. If there is oil leakage in motor housing check for loose hardware or fittings at motor. If oil leakage is excessive or vacuum levels cannot be maintained, replace vacuum motor.
