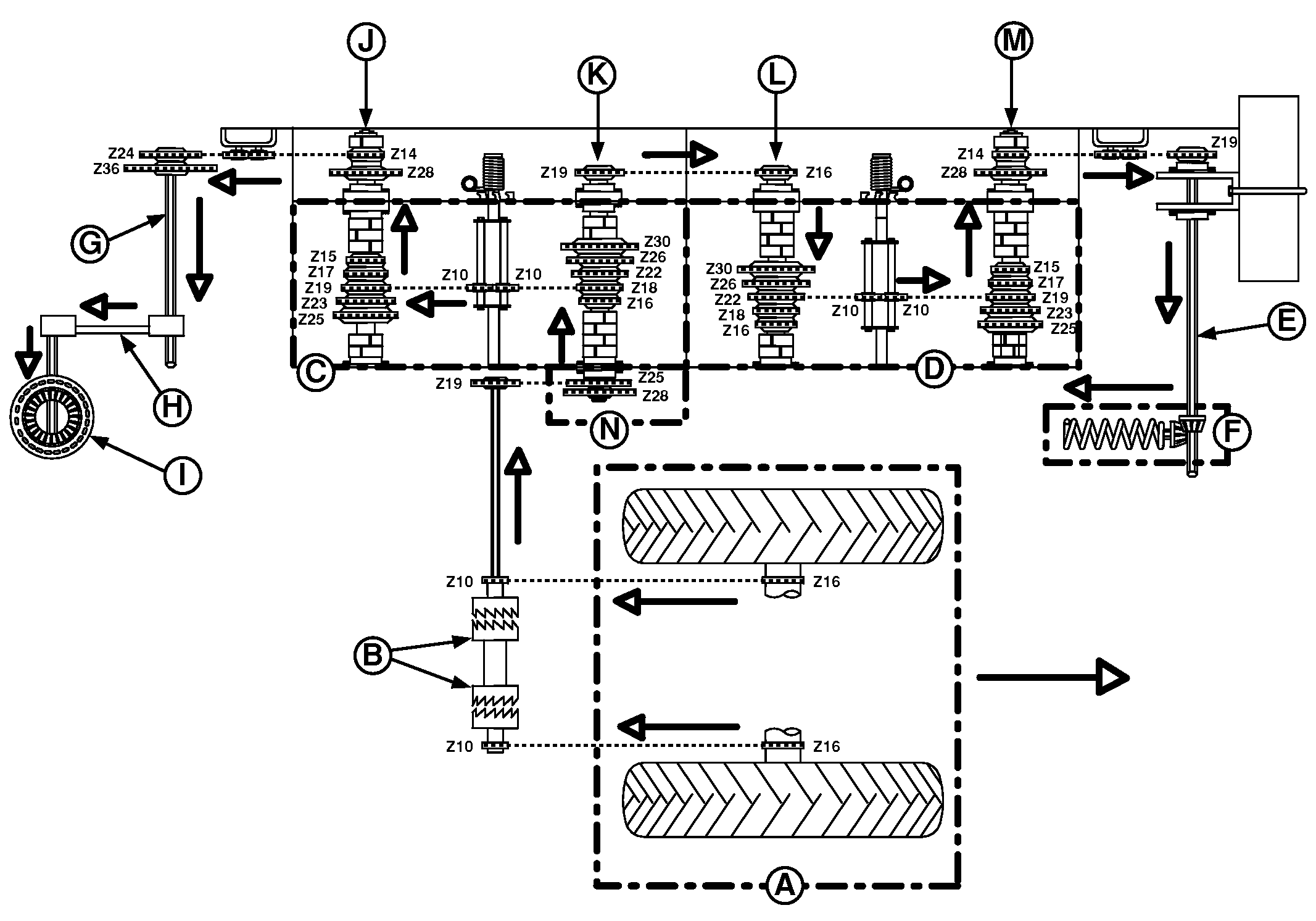

Plan View of Transmission

CQ292566-UN-19SEP12

A - Wheels

B - Clutches

C - Seed metering transmission group

D - Fertilizer metering transmission group

E - Fertilizer box drive shafts

F - Fertilizer metering spindle

G - Seed meter drive shaft

H - Planting row

I - Seed metering disk

J - Driven group

K - Drive group

L - Drive group

M - Driven group

N - Transmission Input

Zxx - Number of teeth on gear

IMPORTANT: For 10.5/18 wheels, Z25 gear is used at transmission input (N) and for 7.50/16 wheels, Z28 gear is used at transmission input (N).

NOTE: Arrows indicate transmission sequence.
