Seed Disks Supplied with Planter

Three disks are supplied with planter.

A42586 Disk - Soybeans (3748-7716 seeds/kg)

CQ292567-UN-21SEP12

CQ292569-UN-21SEP12

CQ292568-UN-21SEP12

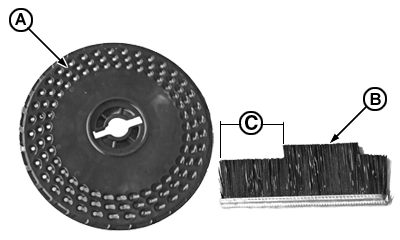

This disk (A) is used for planting soybeans using brush (B) with larger notch (C) pointing toward disk holes.

See Block Vacuum Seed Meter Brush Positioning - Brush Positioning - Multiple-Cell Disk, in this section.

A43215 Disk - Medium Corn (3527-6173 seeds/kg)

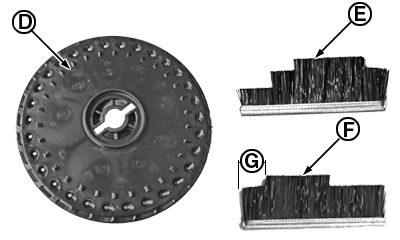

This disk (D) is used for planting medium corn using brush (E) with scaled notch pointing toward disk holes.

See Block Vacuum Seed Meter Brush Positioning - Brush Positioning - Flat Disk, in this section.

Or, if seeds fit properly into holes it is possible to use brush (F) with notch (G) pointing toward disk holes.

See Block Vacuum Seed Meter Brush Positioning - Brush Positioning - Single-Cell Disk, in this section.

A52391 Disk - Large Corn (5070-8598 seeds/kg) or Large Sunflower (7165-4960 seeds/kg)

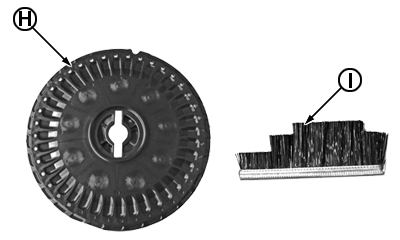

This disk (H) is used for planting medium corn with brush (I) with scaled notch pointing toward disk holes.

See Block Vacuum Seed Meter Brush Positioning - Brush Positioning - Flat Disk, in this section.

IMPORTANT: For planting other crops, purchase the appropriate disk at your John Deere Dealership.
