Hydraulic Cylinder Stops

CAUTION: Avoid crushing injuries.

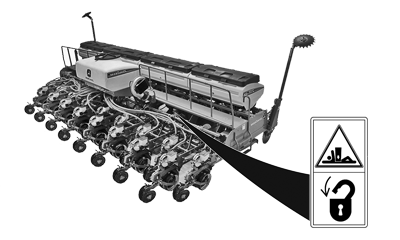

CQ289809-UN-21SEP12

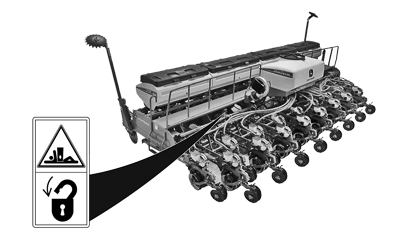

CQ289808-UN-21SEP12

When planter is stationary and service work has to be carried out under the machine, there is the risk of crushing.

Install the safety stops. See Section Installing Hydraulic Cylinder Safety Stops, in Section Preparing the Planter.
