Cylinder Stops

CQ280357-UN-13MAY08

CQ292565-UN-14SEP12

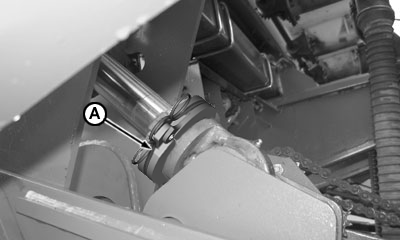

Add blocks (A) to prevent excessive load on rows and furrow openers, thus transferring part of the machine weight to the wheels. Obey to the following rule:

• The softer the soil the greater the number of stops.
• The harder the soil the smaller the number of stops.

CAUTION: Add stops with all rows touching the ground to prevent accidents.

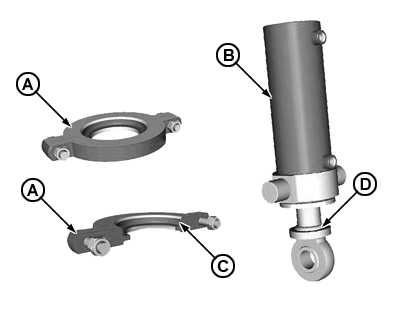

IMPORTANT: Stop should have larger recess (C) pointing toward cylinder eyelet (B) to avoid creating interference with welding seam (D) of cylinder rod (B). Stop should not remain locked to cylinder rod (B).

Item	Measurement	Specification
Stops	Torque	28 N.m 20 lb-ft
