Wheel Support—Type Identification

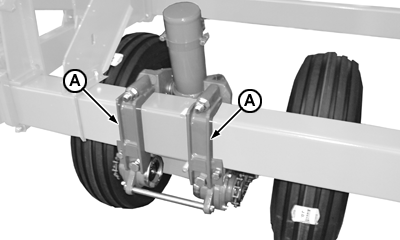

A-Type Wheel Support ( —xxxxxx)

The A-Type wheel support uses clamps (A) attached to the planter chassis.

CQ290092-UN-25FEB14

Type A

A - Clamps

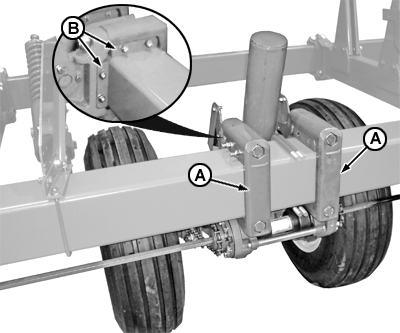

B-Type Wheel Support ( —xxxxxx)

The B-Type wheel support uses clamps (A) and shims (B) attached to the planter chassis.

CQ290093-UN-25FEB14

Type B

A - Clamps

B - Shims
