Spacing between Rows

The following table indicates the different planter models, the possible row spacings for each model and the number of rows per spacing.

Default Settings for 2109 and 2111 Planters

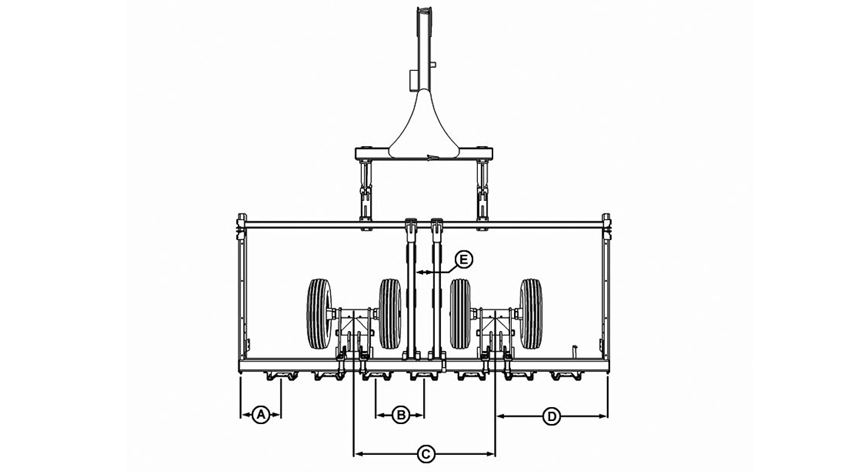

CQ280330-UN-25JAN12

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Spacing between Frame Rails

2109
Number of Rows	6 Bend Plates	8 Bend Plates	A	B	C	D	AND	Wheel Installation
9	0	9	444.5	400	2052	1018.5	324	Closed
4	2	2	-	900	2150	969	540	Closed
7	0	7	-	450	2250	919.5	548	Closed
9	3	6	-	450	2150	969.5	560	Open
8	4	4	294.5	500	2000	1044.5	688	Open
7	4	3	469.5	525	1590	1244.5	208	Open

2111
Number of Rows	6 Bend Plates	8 Bend Plates	A	B	C	D	AND	Wheel Installation
11	0	11	494.5	400	2800	1104	1128	Closed
12	2	10	294.5	400	2400	1269.5	830	Closed
11	2	9	244.5	450	2250	1379	530	Open
9	4	5	494.5	500	2500	1244.5	650	-
10	6	4	244.5	500	3000	994.5	830	Open
9	4	5	394.5	525	2625	1182	650	Open
7	2	5	394.5	700	2800	1094.5	920	Closed
6	0	6	594.5	760	2640	1174.5	950	Closed
6	0	6	494.5	800	2800	1094.5	1320	Closed
5	0	5	674.5	910	2270	1359.5	860	Closed

NOTE: Always start installation with a short row at left-hand side.

Default Settings for 2113, 2115 and 2117 Planters

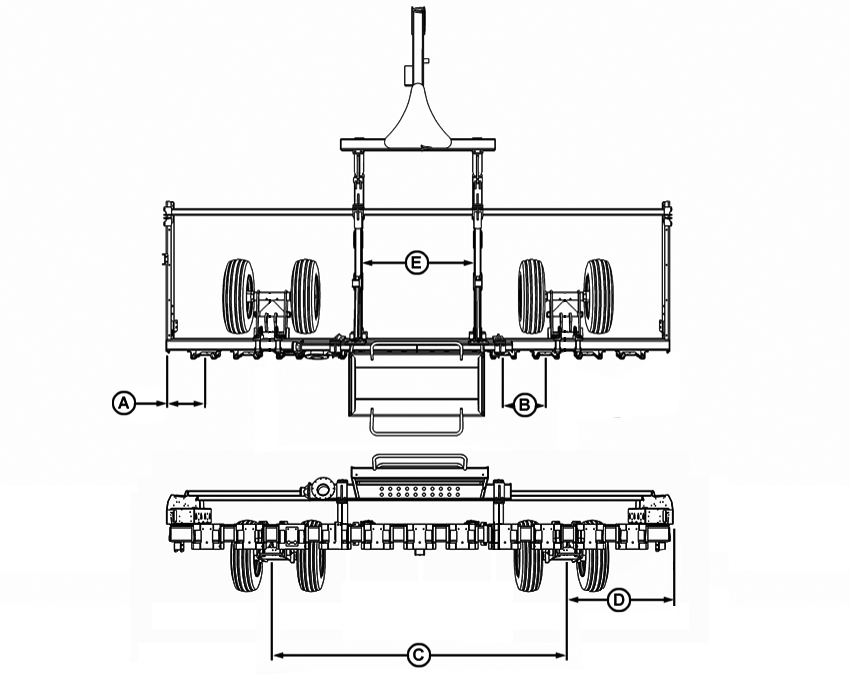

CQ283993-UN-13MAR10

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Spacing between Frame Rails

2113
Number of Rows	A	B	C	D	AND	Wheel Installation
13	594.5	400	3600	1194.5	1124	Closed
14	395	400	3200	1419.51 1369.52	1524	Open3
12	2581 258.52	500	3980	975.51 1029.52	920	Open
12	519.5	450	3600	1194.5	1540	Open
13	2841 2952	450	3150	1419.5	1410	Open
11	494.5	500	3550	1219.5	1520	Open
11	369.5	525	3675	1157	1380	Open
9	794.5	550	3300	1344.5	1420	Closed
9	594.5	550/750	3200	1394.5	1300	Open
8	544.5	700	3500	1244.5	1030	Closed
7	744.5	750	3220	1384.5	840	Closed
7	714.5	760	3260	1364.5	870	Closed
6	719.5	910	3000	1494.5	1440	Closed

2115
Number of Rows	A	B	C	D	AND	Wheel Installation
15	594.5	400	3600	1594.5	980	Closed
16	-	400	3200	1794.5	1530	Closed
15	258	448	3138	1825.5	1400	Open
13	394.5	500	3450	1669.5	1520	Open
13	244.5	525	3675	1557	1610	Open
12	369.5	550	3300	1744.5	860	Open
10	-	600	3600	1594.5	900	Open
10	244.5	700	3500	1644.5	940	Closed
9	354.5	760	3040	1874.5	860	Closed
8	244.5	900	3000	1894.5	1410	Closed
7	664.5	910	3640	1574.5	1410	Closed

2117
Number of Rows	A	B	C	D	AND	Wheel Installation
17	644.5	400	3600	2044.5	990	Closed
18	444.5	400	4000	1819.51 1869.52	1530	Closed
15	694.5	450	4050	1819.5	1400	Open
16	469.5	450	3600	2044.5	1540	Open
17	258	450	4036	1826.5	1400	Open
14	594.5	500	4000	1869.51 1819.52	840	Open
15	344.5	500	3550	2069.5	1530	Open
14	432	525	4200	1744.5	840	Open
12	244.5	760	4060	2395	1270	Closed
11	344.5	700	4200	1744.5	1600	Closed
10	424.5	760	3800	1944.5	1360	Closed
8	659.5	910	4240	1724.5	1420	Closed

NOTE: Always start installation with a short row at left-hand side.

Default Settings for 2122 and 2126 Planters (Lance Type A)

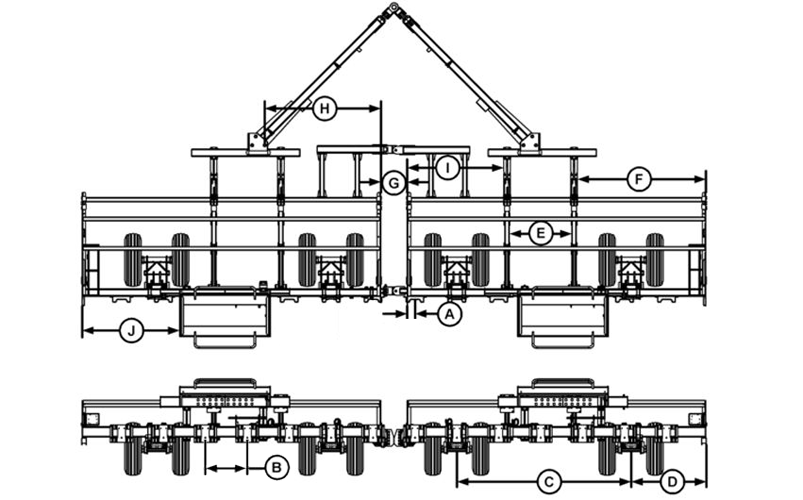

CQ289954-UN-08FEB13

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Spacing between Frame Rails

F - Spacing between Frame Rails

G - Distance between the Two Planters

H - Frame Rail Distance

I - Frame Rail Distance

J - Central Seed Box Distance

2122
Number of Rows	6 Bend Plates	8 Bend Plates	A	B	C	D	AND	F	G	H	I	J
20	4	16	130	400	3200 3200*	1083 1033*	1133	1754	190	2066	1520	1628
22	4	18	130	400	3200 3200*	1083 1033*	1133	1754	190	2066	1510	1628
20	0	20	130	450	3150	1034	1124	1973	190	2066	1730	1628
22	0	22	130	450	3150	1034	1119	1988	190	2066	1730	1628
20	4	16	130	500	3049	1085	1114	1993	240	2041	1730	1628
18	8	10	130	525	2625	1446.5	474	2363	265	2028	1458	1628
14	2	12	130	700	2910	1249	1044	2163	440	1941	1630	1628
14	2	12	130	760	3145	1059	859	1978	500	1911	1390	1628
10	0	10	130	900	3059	1080	1294	1963	640	1841	1580	1628
12	0	12	130	910	3018	1050	1249	1958	650	1836	1630	1628

* Wheel distance, referring to left-hand side of Dual Flex planters with spacing 400 mm.

NOTE: Always start installation with a short row at left-hand side.

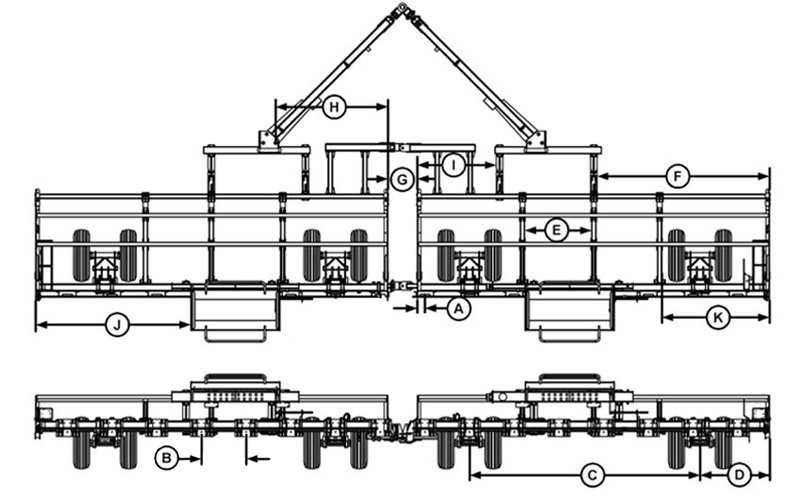

CQ289955-UN-08FEB13

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Spacing between Frame Rails

F - Spacing between Frame Rails

G - Distance between the Two Planters

H - Frame Rail Distance

I - Frame Rail Distance

J - Central Seed Box Distance

K - Frame Rail Distance

2126
Number of Rows	6 Bend Plates	8 Bend Plates	A	B	C	D	AND	F	G	H	I	J	K
24	4	20	130	400	3645 3550*	1239 1284*	984	2880	190	2066	1492	2638	480
26	4	22	130	400	3645 3550*	1239 1284*	984	2880	190	2066	1492	2638	500
24	0	24	130	450	4050	1134	1127	2950	190	2066	1750	2638	1933
26	0	26	130	450	4050	1134	1127	2950	190	2066	1750	2638	1933
24	0	24	130	455	4095	1082	1134	2958	195	2063	1745	2638	1870
24	6	18	130	500	3950	1134	1154	2943	240	2041	1730	2638	1983
22	8	14	130	525	3675	1397	1037	2990	265	2028	1800	2638	2295
16	2	14	130	700	4094	1065	1312	2855	440	1941	1660	2638	1820
16	2	14	130	760	3919	1180	1137	2940	500	1912	1353	2638	1830
14	0	14	130	910	3919	1170	1132	2945	650	1836	1420	2638	1800

* Wheel distance, referring to left-hand side of Dual Flex planters with spacing 400 mm.

NOTE: Always start installation with a short row at left-hand side.

Default Settings for 2122, 2126 and 2130 Planters (Lance Type B)

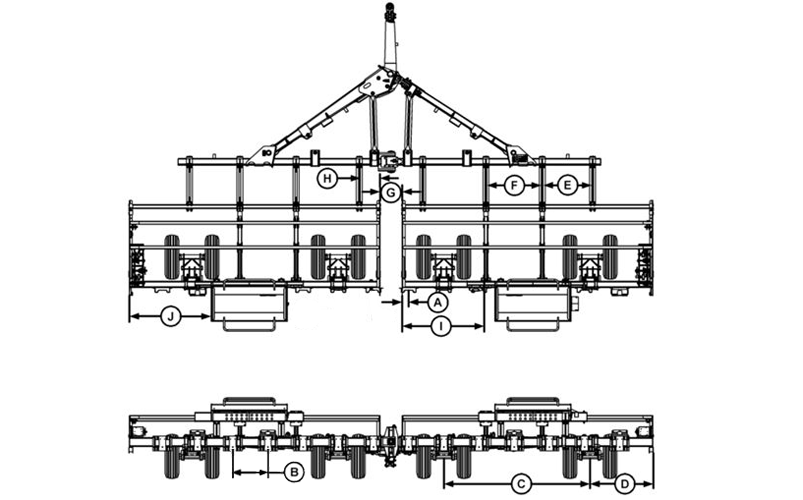

CQ289956-UN-08FEB13

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Spacing between Frame Rails

F - Spacing between Frame Rails

G - Distance between the Two Planters

H - Frame Rail Distance

I - Frame Rail Distance

J - Central Seed Box Distance

K - Frame Rail Distance

2122
Number of Rows	A	B	C	D	AND	F	G	H	I	J	Wheel Installation
24 or 22	130	400	3200	10331 10832	598	1133	190	351	1950	1628	Closed
22	130	450	3150	1034	832	1119	190	351	1730	1628	Open
20	130	500	2999	10751 11452	812	1114	240	351	1730	1628	Open
18	130	525	2625	1446.5	860	745	265	351	1995	1628	Open
14	130	760	3145	1059	667	909	500	351	1950	1628	Closed
14	130	700	2910	1249	882	1044	440	419	1630	1628	Closed
12	130	910	3018	1050	472	1159	650	351	1720	1628	Closed
12	130	900	3059	1080	432	1174	640	351	1700	1628	Closed

* Wheel distance, referring to left-hand side of Dual Flex planters with spacing 400 mm.

NOTE: Always start installation with a short row at left-hand side.

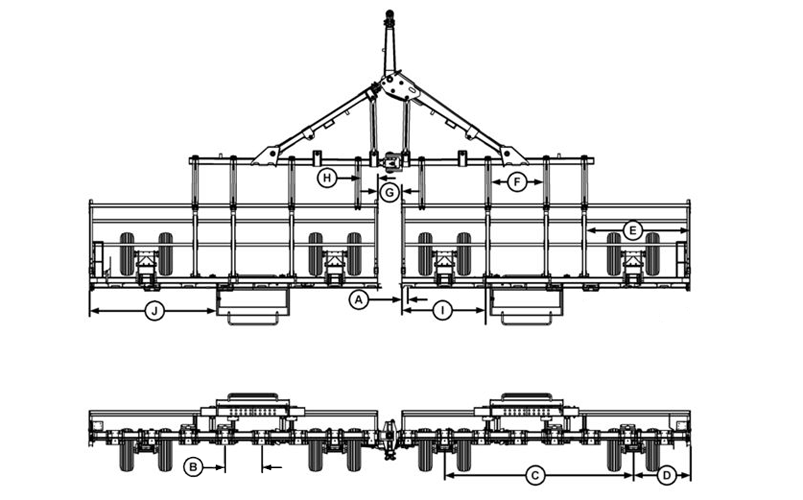

CQ289957-UN-08FEB13

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Spacing between Frame Rails

F - Spacing between Frame Rails

G - Distance between the Two Planters

H - Frame Rail Distance

I - Frame Rail Distance

J - Central Seed Box Distance

K - Frame Rail Distance

2126
Number of Rows	A	B	C	D	AND	F	G	H	I	J	Wheel Installation
26	130	450	4050	1134	1933	1127	190	130	1750	2638	Open
26	130	400	35501 36452	12841 12392	500	984	190	3601 3562	1963	2638	Closed
24	130	455	4095	1081.5	2020	1134	195	360	1745	26381 25882	Open
24	130	500	4000	1144	1983	1154	240	350	1730	2638	Open4
24	130	450	4050	1134	1933	1127	190	3601 3562	1750	2638	Open
24	130	400	35501 36452	12841 12392	500	984	190	3601 3562	1963	2638	Closed
22	130	525	3675	1396.5	2295	1037	265	350	1800	2638	Open
16	130	760	3919	1180	2160	1137	500	350	1750	2638	Closed
16	130	700	4094	1065	2180	1312	440	3591 3562	1660	2638	Closed
14	130	910	3920	1169	2363	1132	650	356	1750	2638	Closed

* Wheel distance, referring to left-hand side of Dual Flex planters with spacing 400 mm.

NOTE: Always start installation with a short row at left-hand side.

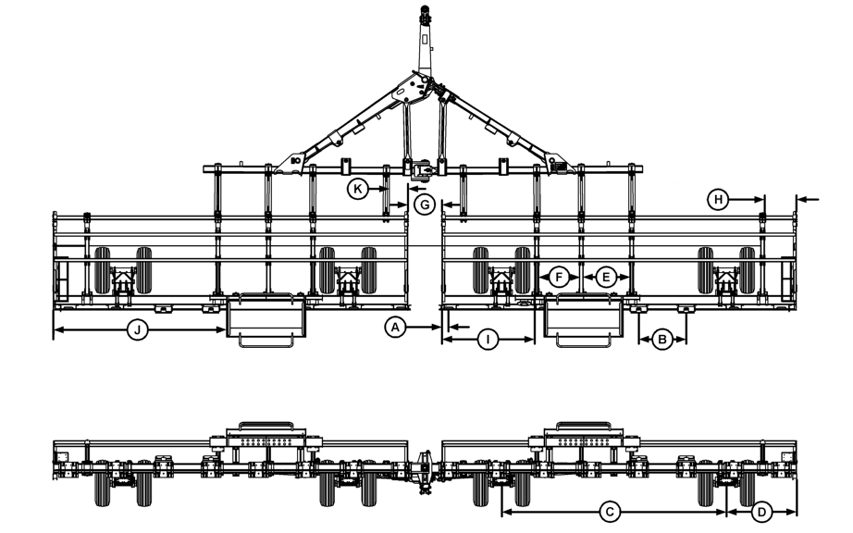

CQ284054-UN-18MAR10

2130

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Spacing between Frame Rails

F - Spacing between Frame Rails

G - Distance between the Two Planters

H - Frame Rail Distance

I - Frame Rail Distance

J - Central Seed Box Distance

K - Frame Rail Distance

2130
Number of Rows	A	B	C	D	AND	F	G	H	I	J	K	Wheel Installation
30	130	455	4095	1427	832	836	195	573	2045	3335.51 3220.52	360	Open
30	130	450	4050	1484	824	8381 8232	190	625	20281 20432	3335.51 3362	350	Open
30	130	400	3999	16361 16842	729	11241 11192	190	850	118201 18252	3330.51 3230.52	360	Closed
26	130	525	4725	1146.5	634	1024	265	2060	1812	3335.51 3220.52	350	Open
26	130	500	45701 44302	13741 14442	754	1091	240	489	1790	3335.51 3220.52	350	Open4
20	130	700	4900	1059	661	1159	440	2050	1790	3335.5	360	Closed
18	130	800	4579	1170	649	1089	540	2200	1832	3335.51 3220.52	360	Closed
18	130	760	4555	1234	649	1131	500	2200	1790	3335.51 3220.52	350	Closed
16	130	910	4304	1340	889	777	650	610	1779	3315.51 3200.52	350	Closed

* Wheel distance, referring to left-hand side of Dual Flex planters with spacing 400 mm.

NOTE: Always start installation with a short row at left-hand side.

Default Settings for 2134 Planters

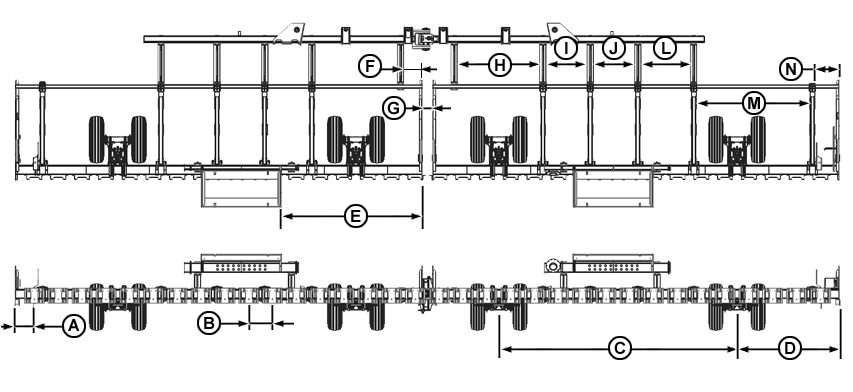

CQ290237-UN-05MAR14

A - Distance from Planter Side to Center Line

B - Spacing between Rows

C - Spacing between Wheels

D - Distance from Frame Side to Wheels Center

E - Central Seed Box Distance

F - Frame Rail Distance

G - Distance between the Two Planters

H - Frame Rail Distance

I - Frame Rail Distance

J - Frame Rail Distance

K - Frame Rail Distance

L - Frame Rail Distance

M - Frame Rail Distance

2134
Number of Rows	A	B	C	D	AND	F	G	H	I	J	K	L	M	Wheel Installation
34	360	450	4500	1934	2660	351	190	1560	774	782	940	2164	473	Open
30	559	500	45691 44292	22751 23452	2660	351	240	1260	1074	730	502	2459	668	Open
20	719	760	455	2134	2660	351	500	1310	1024	680	652	2164	863	Closed

NOTE: Always start installation with a short row at left-hand side.

IMPORTANT: To ensure correct distance between the two planters, measure distance (G) always at front of machine. Rear part of planter will be approximately 30 mm more open in relation to front part; this difference is necessary to ensure alignment between the two planters under planting load.

Distance (G) smaller than 190 mm may cause interference between seed rows when passing over terraces.
