Dimensions—2122, 2126, 2130, and 2134 (Lance B)

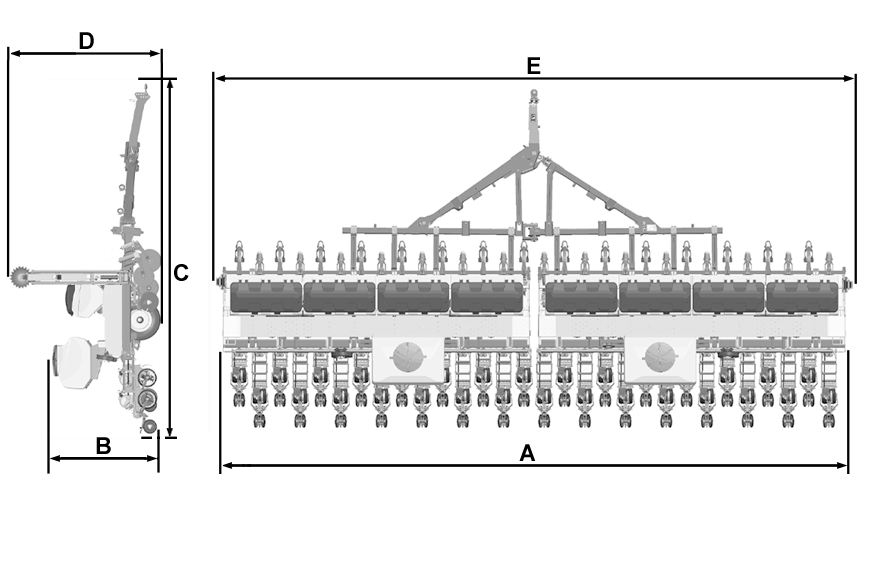

CQ283984-UN-05MAR10

A - Chassis width (with ladder)

B - CCS Planter height

C - Planter length

D - Total planter height

E - Total planter width

Model	A	B	C	D	E
2122	10600 - 11100 mm (34.78 - 36.42 ft)	2500 mm (8.2 ft)	7500 mm (24.6 ft)	3500 mm (11.48 ft)	11400 - 11900 mm (37.4 - 39 ft)
2126	12600 - 13100 mm (41.34 - 42.98 ft)	2500 mm (8.2 ft)	7500 mm (24.6 ft)	3500 mm (11.48 ft)	13200 - 13700 mm (43.31 - 44.95 ft)
2126 Without Fertilizer	12600 - 13100 mm (41.34 - 42.98 ft)	2500 mm (8.2 ft)	7500 mm (24.6 ft)	3500 mm (11.48 ft)	13200 - 13700 mm (43.31 - 44.95 ft)
2130	14200 - 14700 mm (46.59 - 48.23 ft)	2500 mm (8.2 ft)	7500 mm (24.6 ft)	_	_
2134	15568 - 15878 mm (51 - 52 ft)	2500 mm (8.2 ft)	7500 mm (24.6 ft)	_	_

NOTE: It is recommended that the adjustable row marker arms are removed during transport.

IMPORTANT: Measurements refer to machine in transport position with wheels raised.
