Connecting the Hydraulic Hoses—Dual Flex Planters

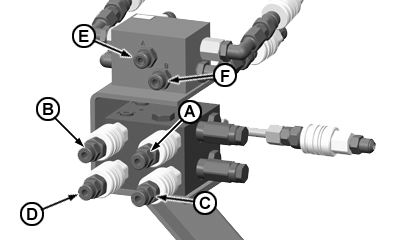

CQ290244-UN-28MAR14

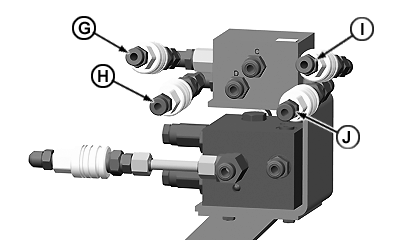

CQ290245-UN-28MAR14

A - Wheel Set Lift Cylinder Inlet

B - Wheel Set Lift Cylinder Return

C - Wheel Set Lift Cylinder Inlet

D - Wheel Set Lift Cylinder Return

E - Connection between Blocks

F - Connection between Blocks

G - Row Marker Cylinder Return

H - Row Marker Cylinder Inlet

I - Row Marker Cylinder Return

J - Row Marker Cylinder Inlet

Connect system hoses according to illustration.

IMPORTANT: Directly connect the vacuum hydraulic hoses to the flow control valve.

NOTE: If the hose connections are inverted, one seed drill will rise while the other will lower. If this occurs, swap the hose connections.
