Adjusting Seed Meter Pawls

NOTE: This procedure refers to seed meter chain transmission.

1.

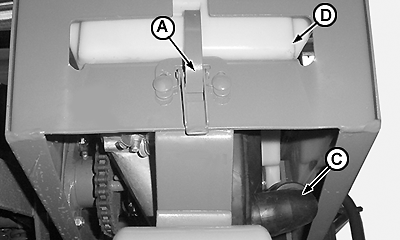

   CQ279468-UN-12FEB07

   Loosen lock (A).

---




2. Disconnect vacuum hose (C) from seed meter.

3. Remove seed box (D).

4.

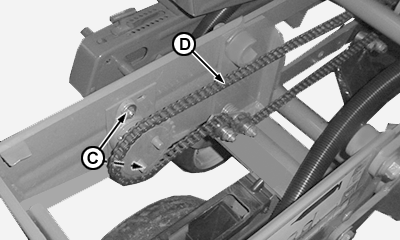

   CQ279466-UN-12FEB07

   Remove chain (D) and loosen nuts (C).

---




5. Reinstall seed box into place and engage lock (A).

6.

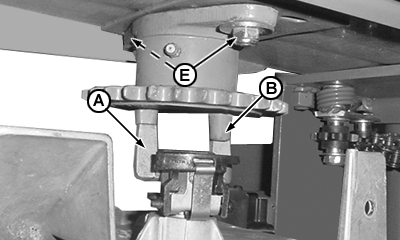

   CQ279467-UN-12FEB07

   Adjust gear so that pawls (A) of seed meter will fit into catches (B) of gear.

---




7. Tighten nuts (E).

8.
   CQ279466-UN-12FEB07

   Remove seed box and install chain (D).

---




9.
   CQ279468-UN-12FEB07

   Install seed box (D).

---




10. Attach lock (A) and install vacuum hose (C).
