Adjusting Distance Between Closing Wheels

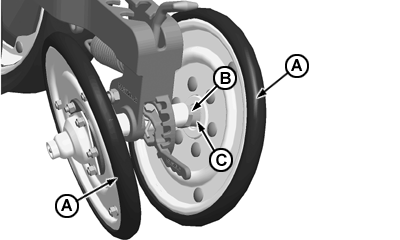

CQ283996-UN-15MAR10

1. Loosen nuts (B) and move wheels (A) away from each other by unscrewing from axle (C).

2. After achieving the required spacing, secure assembly through nut (B).

   NOTE: This adjustment permits a better flow of straw between the wheels. It is appropriate for conditions of high straw content.
