Interpreting the Serial Number of Your Machine - 17 digits PIN

CQ282320-UN-01JUN09

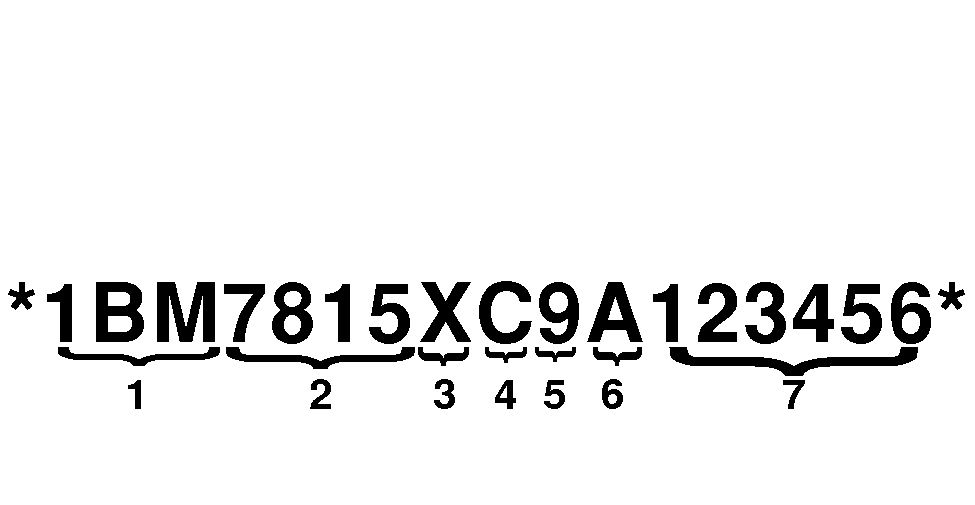

Interpreting the Serial Number of Your Machine
1	World Manufacturer Code	CQ — Machines produced at JD Horizontina NW — Machines produced at JD Catalão BM — Machines produced at JD Montenegro
2	Machine Model
3	Model Identifier Suffix	Calculated using the other 16 digits
4	Check Letter	A, B, C, D... (According to JDS G139)
5	Year of Manufacture	According to the Year of manufacture table
6	Transmission Type	According to transmission type chart
7	Sequential Manufacturing Serial Number	000001, 000127....

Year of Manufacture Code
Year	Code	Year	Code	Year	Code	Year	Code
2008	8	2018	J	2028	W	2038	8
2009	9	2019	K	2029	X	2039	9
2010	A	2020	E	2030	Y	2040	A
2011	B	2021	M	2031	1	2041	B
2012	C	2022	N	2032	2	2042	C
2013	D	2023	P	2033	3	2043	D
2014	E	2024	R (Right-Hand)	2034	4	2044	E
2015	F	2025	S	2035	5	2045	F
2016	G	2026	T	2036	6	2046	G
2017	H	2027	V	2037	7	2047	H

Each model has its own sequential number. Sequential numbers begin with 000001 for new models.

Each model has its Machine Series Code. This code will change whenever there is a significant change of the machine's configuration.
