Locking Planting Units

CQ282105
CQ282105-UN-18FEB09

NOTE: This operation only applies to corn and cotton planting.

  1. With planter raised, put a wooden block under planting row unit.

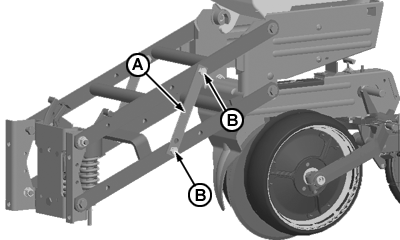

  2. Lower planter until holes (B) of locking bar (A) are aligned with holes of parallel arms.

  3. Install bolts.

  4. Repeat procedure on other side of row.

GL04739,000000C-19-20090219
