Dimensions—2122 and 2126 (Hitch A)

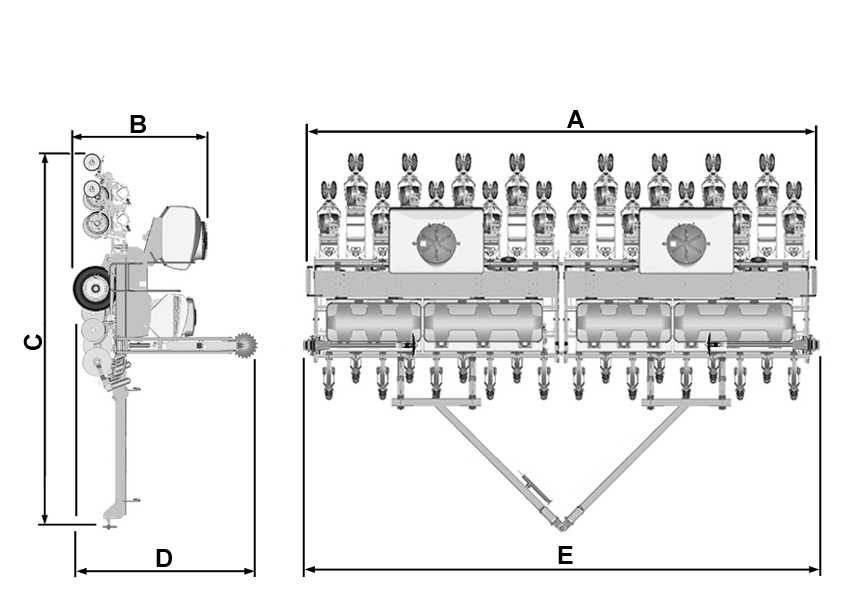

CQ224620-UN-06JUL04

A - Chassis width (with ladder)

B - Height of planter CCS

C - Planter length

D - Total planter height

E - Total planter width

Model	A	B	C	D	E
2122	10600 - 11100 mm (34.78 - 36.42 ft)	2,500 mm (8.2 ft)	6800 mm (22.31 ft)	3,500 mm (11.48 ft)	11,400 - 11,900 mm (37.4 - 39 ft)
2126	12400 - 12900 mm (40.68 - 42.32 ft)	2500 mm (8.2 ft)	6800 mm (22.31 ft)	3,500 mm (11.48 ft)	13200 - 13700 mm (43.31 - 44.95 ft)

NOTE: It is recommended that the adjustable row marker arms are removed during transport.

IMPORTANT: Measurements refer to machine in transport position with wheels raised.
