Vacuum Seed Meter Brush Positioning

Brush Types

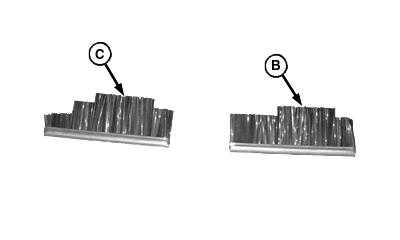

A53450-UN-05DEC03

B - Single notch brush

C - Double notch brush

NOTE: The single notch brush (B) should be used with cell disks.

The double notch brush (C) should be used with flat disks (without cells).

Brush Positioning

Multiple cell disk

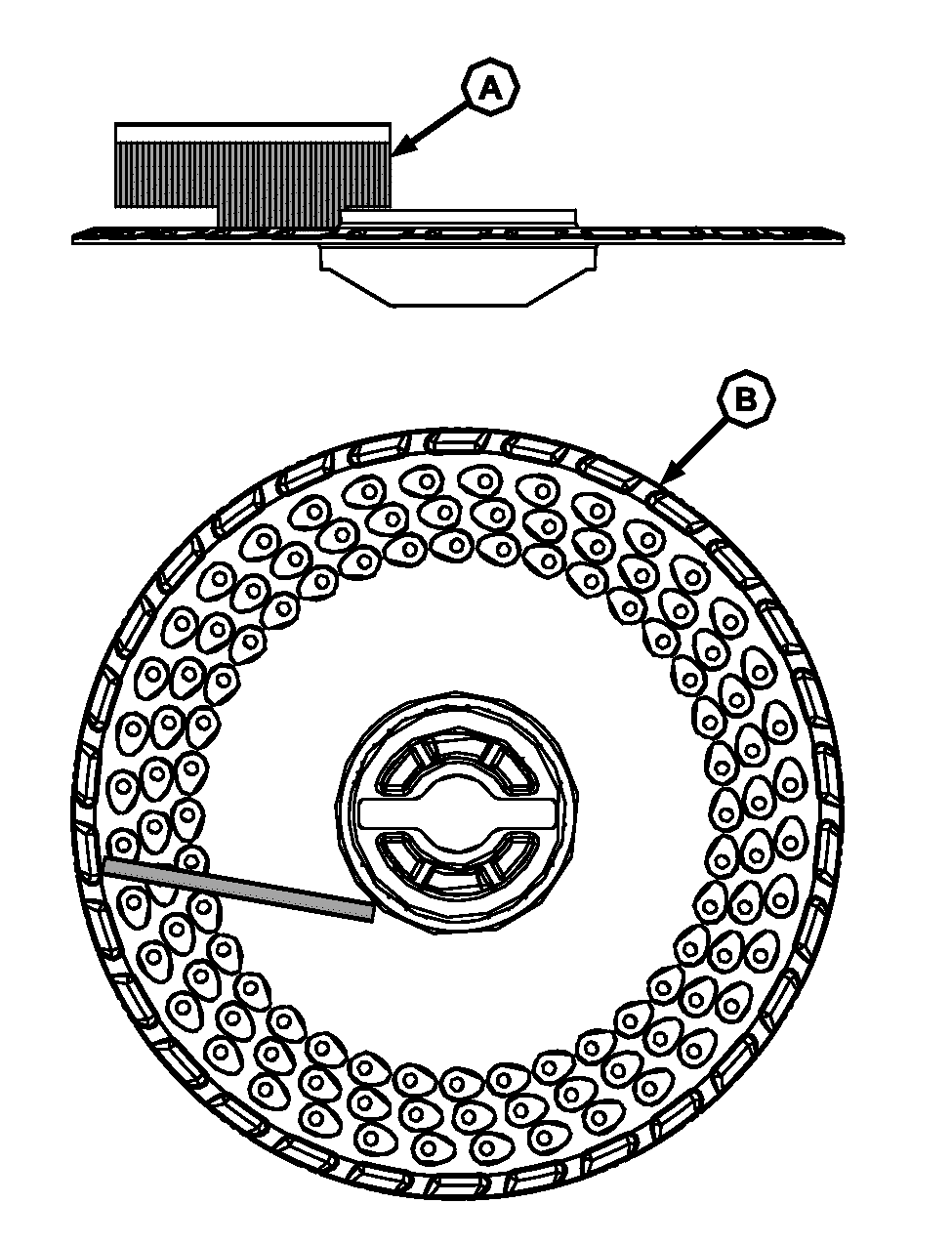

CQ289196-UN-02DEC10

A - Single notch brush

B - Multiple cell disk

The single notch brush (A) should be positioned as illustrated when using multiple cell disks.

Single cell disk

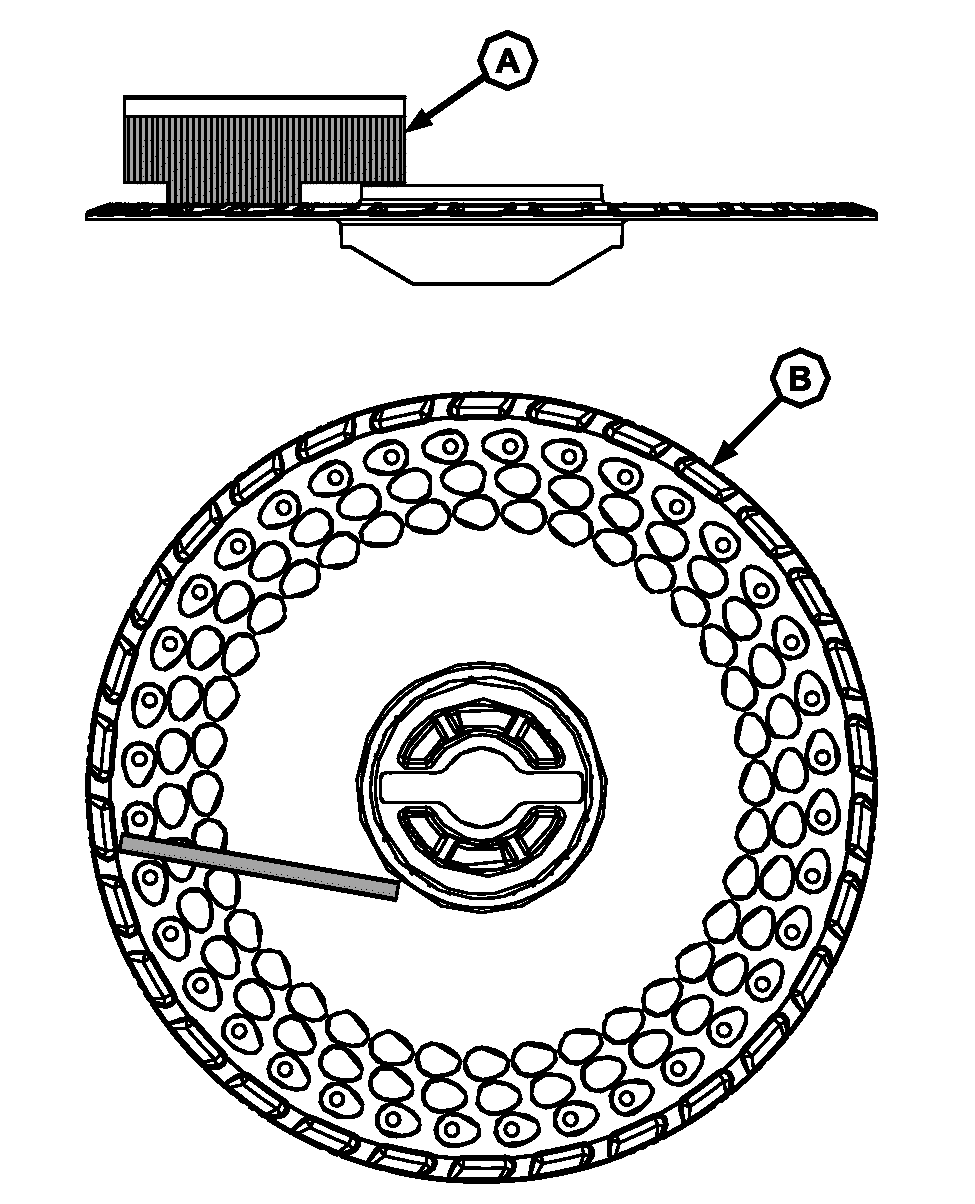

CQ289197-UN-02DEC10

A - Single notch brush

B - Single cell disk

The single notch brush (A) should be positioned as illustrated when using single cell disks.

Flat disk

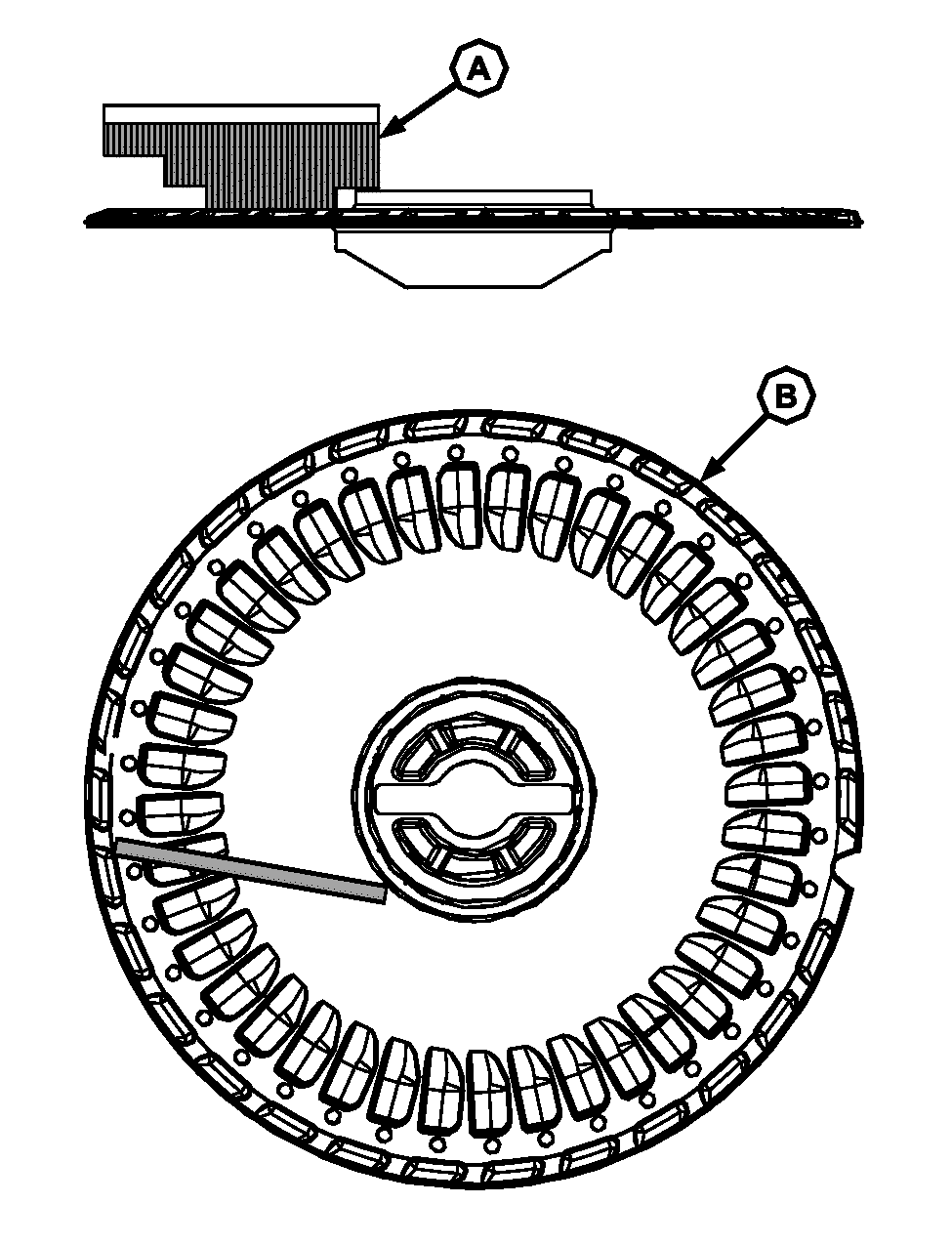

CQ289198-UN-02DEC10

A - Double notch brush

B - Flat disk

The double notch brush (A) should be positioned as illustrated when using flat disks.
