Dimensions—2109, 2111, 2113, 2115 and 2117

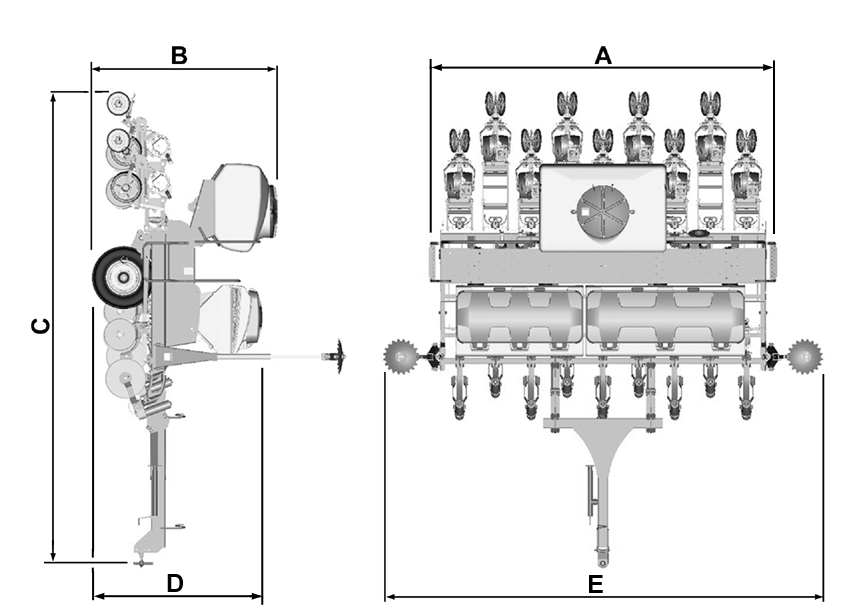

CQ224270
CQ224270-UN-06JUL04

A - Chassis width (with ladder)

B - Planter height with CCS

C - Planter length

D - Planter height without CCS

E - Total planter width

Model

A

B

C

D

E

2109

4400 mm
(14.4 ft)

2500 mm
(8.2 ft)

6000 mm
(19.68 ft)

2350 mm
(7.71 ft)

5500 mm
(18 ft)

2111

5300 mm
(17.39 ft)

2500 mm
(8.2 ft)

6000 mm
(19.68 ft)

2350 mm
(7.71 ft)

6400 mm
(21.00 ft)

2113 ( - 089999)

6200 mm
(20.34 ft)

2500 mm
(8.2 ft)

6000 mm
(19.68 ft)

2350 mm
(7.71 ft)

7300 mm
(23.95 ft)

2113 (090000 - )

6300 mm
(20.66 ft)

2500 mm
(8.2 ft)

6000 mm
(19.68 ft)

2350 mm
(7.71 ft)

7200 mm
(23.62 ft)

2115

7100 mm
(23.29 ft)

2500 mm
(8.2 ft)

6000 mm
(19.68 ft)

2350 mm
(7.71 ft)

8000 mm
(26.24 ft)

2117

8000 mm
(26.25 ft)

2500 mm
(8.2 ft)

6000 mm
(19.68 ft)

2350 mm
(7.71 ft)

8900mm
(29.20 ft)

2117 - Cotton

8720 mm
(28.60 ft)

2500 mm
(8.2 ft)

6000 mm
(19.68 ft)

2350 mm
(7.71 ft)

10000 mm
(32.80 ft)

NOTE: When row marker is in transport position maximum drill height is achieved.

It is recommended that the adjustable arms of the row markers are removed for transport.

IMPORTANT: Height measurement refers to machine in transport position.
