Multi-Furrow Opener Adjustment

Furrow Opener Ground Pressure

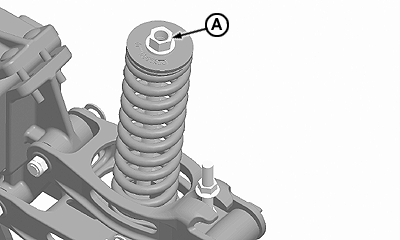

CQ289207-UN-24JAN11

Adjust furrow opener ground pressure through nut (A). Turn nut clockwise to increase pressure and counterclockwise to decrease pressure. Pressure should be equal on all furrow openers.

NOTE: To aid the adjustment process the machine should preferably be raised.

Furrow Opener Depth

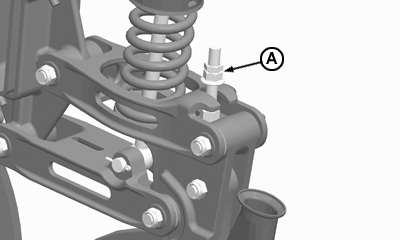

CQ289208-UN-24JAN11

Furrow opener depth can be adjusted through nuts (A).

NOTE: To facilitate this procedure, the spring should be at its minimum pressure setting and the planter should be lowered.
