Replacing the Furrow Openers

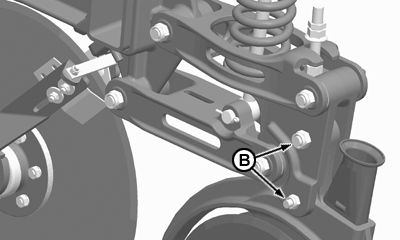

CQ289209-UN-24JAN11

1. Remove Fertilizer Hose

2. Remove screws (B) and nuts.

3. Remove furrow opener from bracket.

4. Install new furrow opener to fertilizer support, using the same screws and install fertilizer hose.
