Connecting the Hydraulic Pump to the Tractor PTO—VACUMETER™ Planter without CCS

CQ236510-UN-03MAR05

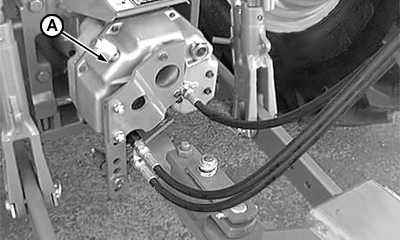

If the tractor is not equipped with a flow control valve the hydraulic pump (A) must be connected to the tractor PTO.

AH129101	For planters with up to 9 rows
DQ29567	For planters with 10 or more rows

NOTE: To install hydraulic pump kit see your John Deere dealer.

For further information see “Coupling Planter” section.
