Tank Level Sensors

CQ228440-UN-25NOV04

CQ224671-UN-24FEB05

IMPORTANT: Before filling up CCS tanks, clean the level sensors using a brush.

NOTE: The tank level sensor is factory-installed at the lowest possible level. the sensor may be adjusted to a higher position, enabling the warning at a higher seed level.

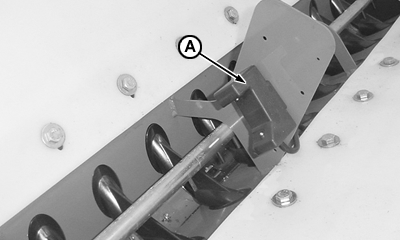

The tank level sensors (A) are optical sensors.

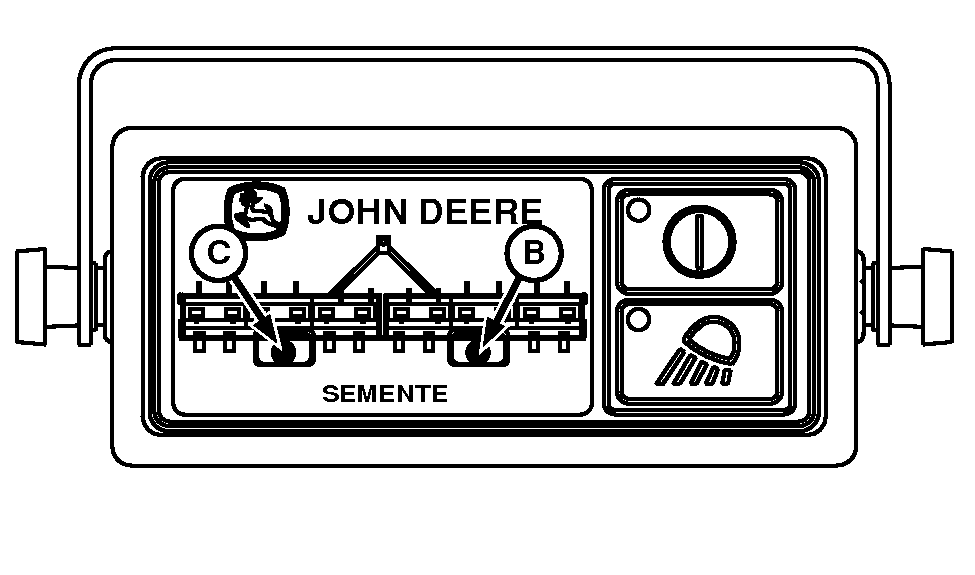

The low level warning light (B) goes out when the level of seeds is low in tank 1.

In Dual Flex Planters, the low level warning light (C) goes out when the level of seeds is low in tank 2.
