Cleaning Fertilizer Boxes and Meters

CQ240330
CQ240330-UN-20APR05

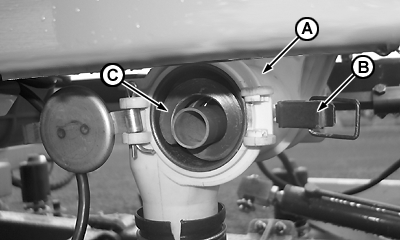

  1. Disconnect hoses from meters (A).

  2. Tip fertilizer tank forwards.

  3. Clean fertilizer tank.

  4. Loosen locking pin (B).

  5. Remove auger (C).

  6. Clean fertilizer deposits from bottom of meters.

ML70882,000047B-19-20050418
