Check Level of Oil in Hydraulic Pump

CQ236530-UN-03MAR05

Periodically check the oil level of the hydraulic pump driving the planter vacuum system.

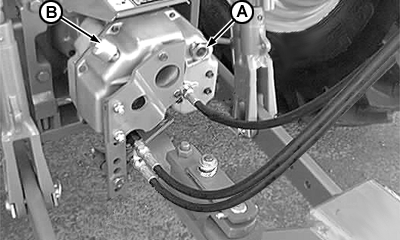

Oil level should be in the centre of the sight glass (A). If it is below this mark, top up the oil level by adding oil via the filler neck (B).

After filling up hydraulic pump, replace cap on filler neck (B). Avoid the build up of dirt and dust around the filler neck cap, given that this is a vent cap.
