Drawbar Adjustment

CQ189610-UN-14MAY08

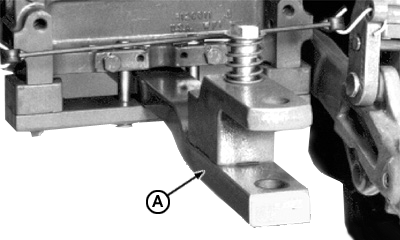

Drawbar height (A) of the tractor may vary in relation to the ground.

Item	Measurement	Specification
Drawbar height	Minimum distance	330 mm (13 in.)

Adjust height as required and fix bar in place in centre of support.

To adjust drawbar consult tractor operator's manual.
