Operation of Tank Caps

CAUTION: Disengage CCS fan before removing tank cap. Failure to do so may result in injury.

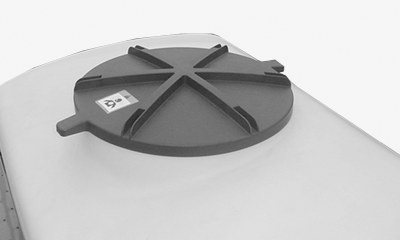

CQ228430
CQ228430-UN-25NOV04

To open, turn cap counterclockwise. To close cap, align peg with arrow and turn clockwise.
