Adjusting Spacing between Fertilizer Furrow Openers—Planters with up to 18 Rows

CQ202631-UN-02DEC04

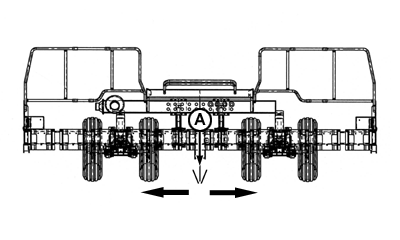

CQ224290-UN-22JUN04

Spacing between odd rows

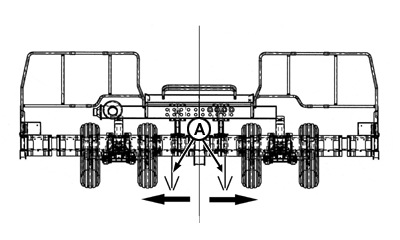

CQ224291-UN-22JUN04

Spacing between even rows

1. Place support feet in park position.

   NOTE: To facilitate this process all seeds and fertilizer must be removed from planter. Check the contents of the seed and fertilizer boxes and, if necessary, empty them.

2. Lower the planter until the disk or hoe-type furrow openers are close to ground level.

   NOTE: The disk or hoe-type furrow openers must not touch the ground.

3. Loosen the furrow opener (A) attaching bolts (B).

4. Shift the furrow openers to the required spacing in the following manner.

   1. Planters with an odd number of rows: the central furrow opener does not need to be shifted. Using this as a fixed reference, shift all other furrow openers to the required spacing.

   2. Planters with an even number of rows: first place the two furrow openers closest to the chassis centre (one on either side of the chassis centre) at the required spacing, as illustrated.

   3. Then shift all other furrow openers to required spacing.

5. Retighten the furrow opener attaching bolts after adjustment. Ensure that the fertilizer tubes are aligned with the furrow openers, rearrange if necessary.

   IMPORTANT: It may be necessary to remove some furrow openers, depending on the spacing required. If this is the case, the feed cups that are not going to be used inside the fertilizer box must be closed off, to prevent fertilizer loss.
