How to Zero the CCS Fan Pressure Gauge

A51170-UN-18NOV02

1. With the CCS fan disengaged and the pressure gauge in the vertical position, disconnect the pressure gauge line to alleviate pressure.

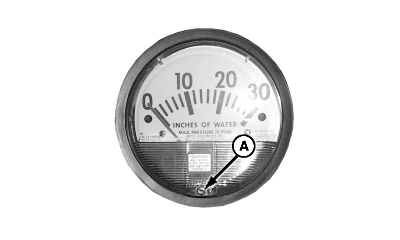

2. Use setscrew (A) to position pressure gauge needle exactly on zero.

3. Connect pressure line.
