Leveling Planter

CQ217911-UN-02DEC04

CQ289200-UN-06DEC10

CQ283983-UN-04MAR10

CAUTION: On Dual Flex planters, the two planters must be coupled with the pins in corresponding holes.

IMPORTANT: Level the planter to ensure optimum planting performance.

NOTE: Header height is adjusted by moving the position of the pins (A), (B) or (C) in the coupling holes.

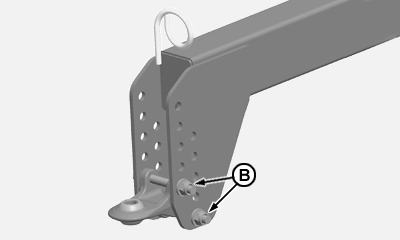

Single hitch planter:

Loosen bolts (B) and change position as required.

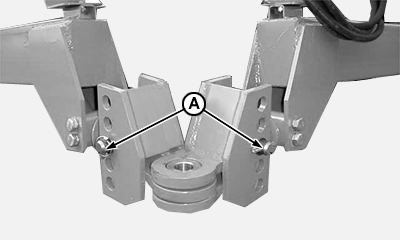

Planters with Dual Flex hitch (hitch A):

Remove pin (A) and change position as required.

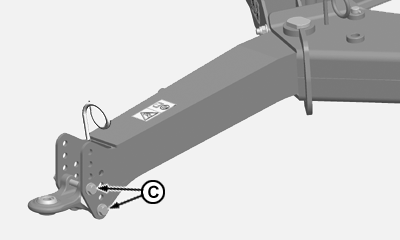

Planters with Dual Flex hitch (hitch B):

Loosen bolts (C) and change position as required.
