Operation of the CCS System When Planting Sorghum

IMPORTANT: Remove covers before changing to a crop with larger seeds. Seeds of a larger size will not exit the tanks with the covers in place. Therefore, the tanks must be drained, the covers removed and the tanks filled up again.

A50710
A50710-UN-17OCT02

Covers

A51047
A51047-UN-08NOV02

A51048
A51048-UN-08NOV02

Elbow - Sorghum

A - Cover

B - Elbow

C - Elbow (Sorghum)

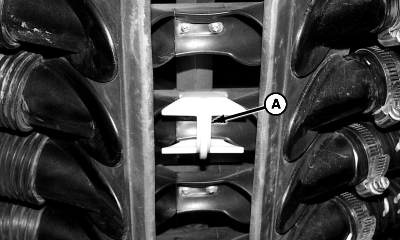

The covers (A) must be in place over all feed cups before filling up tank.

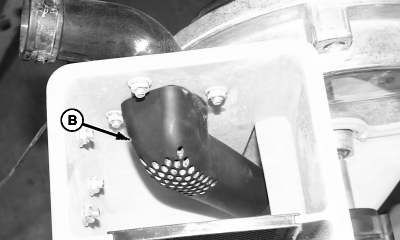

Remove the small-hole elbow (B) from the seed feeders.

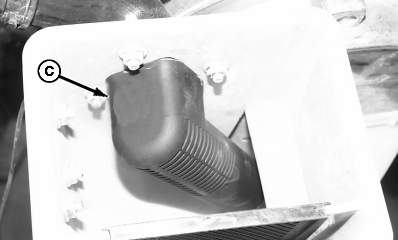

Install the slit-hole elbow (C) on all seed feeders.

ML70882,0000501-19-20041203
