Replacing Finger Pick-Up Meter with Radial Bean Meter

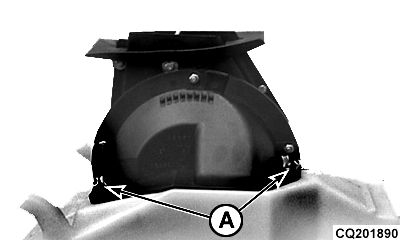

CQ201890
CQ201890-UN-14FEB01

Finger Pick-Up Meter

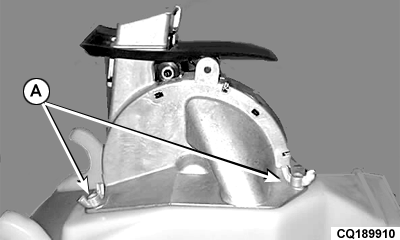

CQ189910
CQ189910-UN-26AUG99

Radial Bean Meter

The finger pick-up meter mechanism can easily be replaced by the radial bean meter mechanism.

To perform this, proceed as follows:

  1. Turn the seed box upside down and remove the two bolts (A).

  2. Pull the finger pick-up meter mechanism vertically upwards.

  3. Place the radial bean meter mechanism in position and fix in place with the bolts removed in step 1.

ML70882,0000507-19-20041203
