Vacuum Level, Deflector and Brush Position of Vacuum Meter for High Density Sorghum, Sorghum, Cotton and Soybeans

H42255-UN-26JUN90

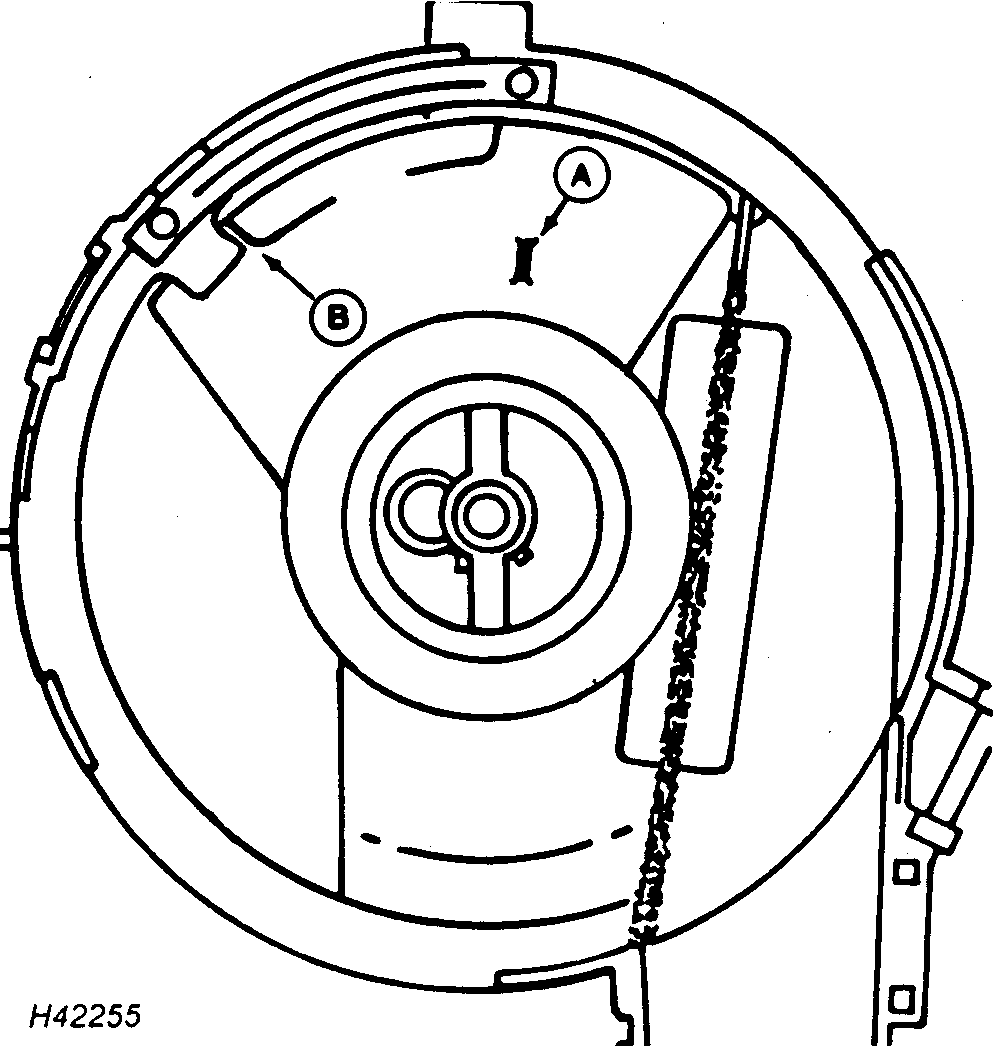

Position above deflector

H42249-UN-19JUN90

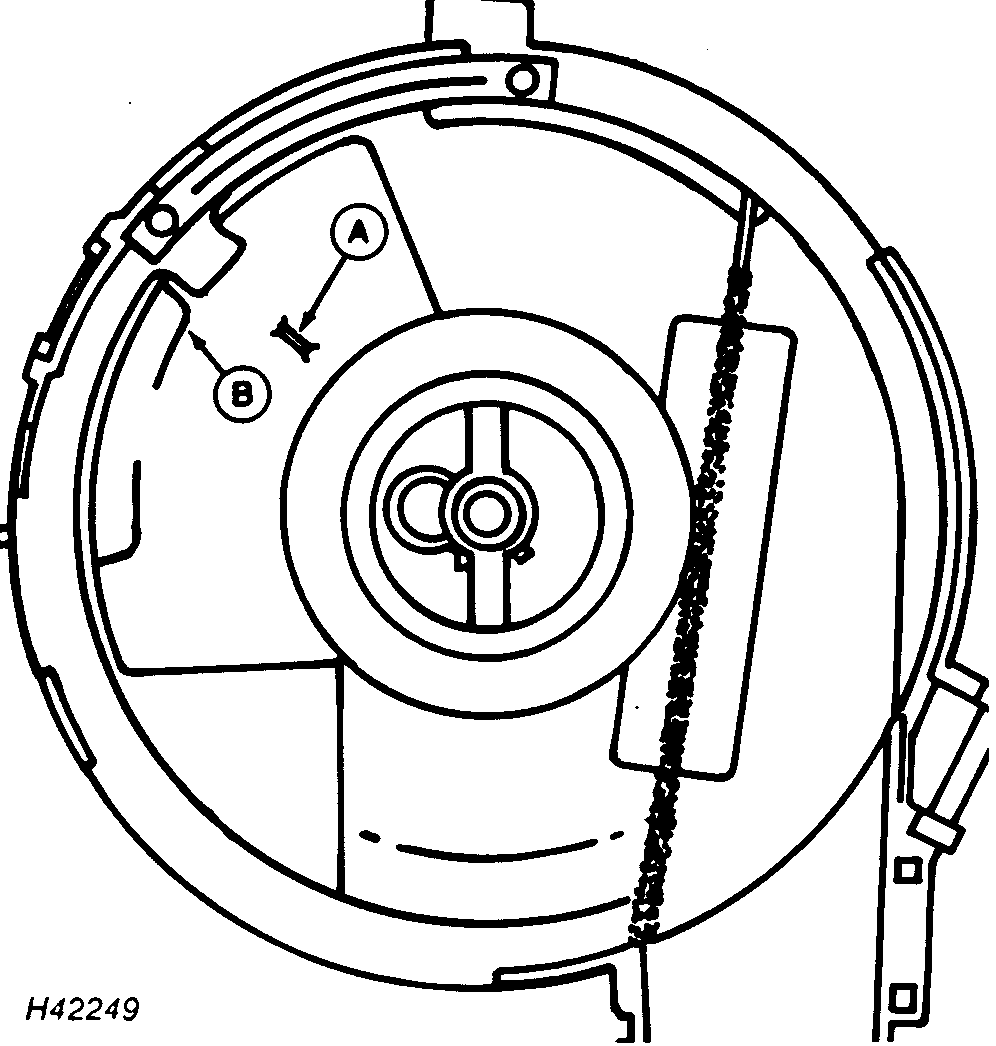

Position below deflector

CQ228640-UN-30NOV04

Regular brush

CQ228650-UN-30NOV04

Short brush

Vacuum Level, Deflector and Brush Position
Crop	Vacuum Level	Deflector Position	Brush
Soybeans	8 Inch	Above	Regular
Sorghum	8 Inch	Below	Regular
High Density Sorghum	8 Inch	Below	Regular
Cotton	8 Inch	Above	Regular

NOTE: If the sweet corn double eliminator is installed, release attaching bolt from nut and turn it to MOVE the tip of the eliminator as much AWAY from the centre of the metering box as possible.
